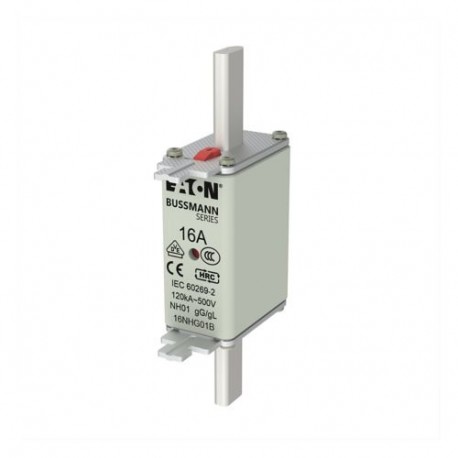

EATON - MOELLER NH FUSE 16A 500V GG/GL SIZE 01 NH FUSE 16A 500V GG/GL SIZE 01 16NHG01B EATON ELECTRIC cartridge fuse, BT, 16 a, AC 500 V, NH01, gL/gG, IEC,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 16A 500V GG/GL SIZE 01 16NHG01B EATON ELECTRIC cartridge fuse, BT, 16 a, AC 500 V, NH01, gL/gG, IEC,..

NH FUSE 16A 500V GG/GL SIZE 01

16NHG01B

16NHG01B

EATON - MOELLER

3 Pcs.

cartridge fuse, BT, 16 a, AC 500 V, NH01, gL/gG, IEC, indicator dual, metal terminals NH FUSE 16A 500V GG/GL SIZE 01 Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 16A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cartridge fuse provides dependable circuit protection in industrial control panels by safely interrupting overcurrents and preventing equipment damage. This Eaton Moeller NH FUSE 16A 500V GG/GL SIZE 01 unit is standard in facility power architecture for general cable and device protection.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH01
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 16 A
  • Rated voltage AC (EF007682): 500 V
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
16NHG01B
Model Code
NH FUSE 16A 500V GG/GL SIZE 01
EAN
5027590437776
UPC
051712625906
Product Length/Depth
135 mm
Product Height
57.8 mm
Product Width
29.55 mm
Product Weight
0.261 kg
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
16 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH0
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
