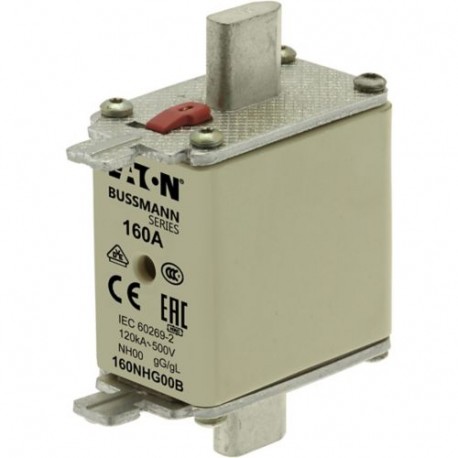

EATON - MOELLER NH FUSE 160A 500V GG/GL SIZE 00 NH FUSE 160A 500V GG/GL SIZE 00 160NHG00B EATON ELECTRIC cartridge fuse, BT, 160 a, AC 500 V, NH00, gL/gG, I.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 160A 500V GG/GL SIZE 00 160NHG00B EATON ELECTRIC cartridge fuse, BT, 160 a, AC 500 V, NH00, gL/gG, I..

NH FUSE 160A 500V GG/GL SIZE 00

160NHG00B

160NHG00B

EATON - MOELLER

3 Pcs.

cartridge fuse, BT, 160 a, AC 500 V, NH00, gL/gG, IEC, indicator dual, metal terminals NH FUSE 160A 500V GG/GL SIZE 00 Eaton Bussmann series low voltage NH Fuse, 160A, 500 V, 120 kAIC, Blade end Fuse, Fuse-link, low voltage, 160 A, AC 500 V, NH00, gL/gG, IEC, dual indicator, square body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA, Optional accessories fuse-holder SD00-D

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
160NHG00B
Model Code
NH FUSE 160A 500V GG/GL SIZE 00
EAN
5027590437189
UPC
051712625883
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
182 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
160 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH00
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors

ETIM for 160NHG00B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH00
Voltage type (EF000187) AC
Rated current (EF000227) 160 A
Rated voltage AC (EF007682) 500 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) gG (cable protection/equipment protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 10 W
