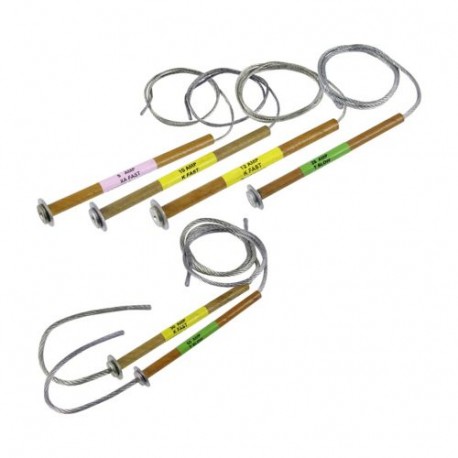

EATON - MOELLER 15KV 8 AMP LINK 15KV 8 AMP LINK 15TD8 EATON ELECTRIC 15KV 8 AMP LINK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 8 AMP LINK 15TD8 EATON ELECTRIC 15KV 8 AMP LINK

15KV 8 AMP LINK

15TD8

15TD8

EATON - MOELLER

25 Pcs.

15KV 8 AMP LINK Expulsion fuse-link, medium voltage, 8 A, AC 15 kV, 533 mm ANSI, T slow, style D termination

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller 15KV 8 AMP LINK is a medium voltage expulsion fuse designed to clear electrical faults on distribution lines and protect connected assets. Its reliable breaking action helps maintain safety and continuity across utility grids. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 8 A
  • Rated voltage (EF000228): 15 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): T
  • Type of termination (EF012540): Double tail
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15TD8
EAN
5027590436304
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
19.24 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
8 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Double tail
Color
Green

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
