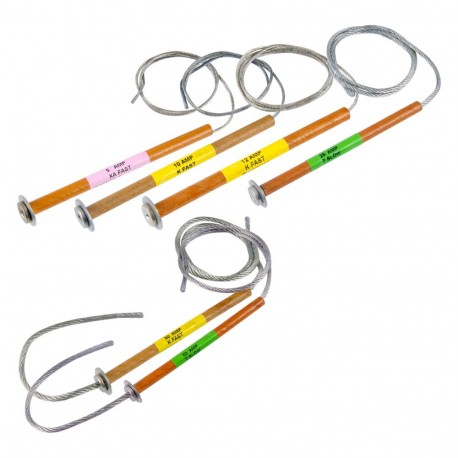

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
15KV 7.5AMP LINK 15KB7.5 15KB7-5 EATON ELECTRIC 15KV 7.5AMP LINK
15KV 7.5AMP LINK
15KB7.5
15KB7-5
EATON - MOELLER
25 Pcs.
15KV 7.5AMP LINK
15KB7.5 - Expulsion fuse-link, medium voltage, 7.5 A, AC 15 kV, 533 mm, ANSI, K fast, style B termination
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Expulsion fuse-link, medium voltage, 7.5 A, AC 15 kV, 533 mm, ANSI, K fast, style B termination
Expulsion fuse-link, medium voltage, 7.5 A, AC 15 kV, 533 mm, ANSI, K fast, style B termination
General specifications
Product name
Eaton Bussmann series medium voltage expulsion fuse
Part no.
15KB7.5
EAN
5027590435338
Product Length/Depth
225 millimetre
Product height
76 millimetre
Product width
106 millimetre
Product weight
18.96 gram
Compliances
ANSI C37.42
Certifications
Contact Manufacturer
Product Tradename
None
Product Type
Medium voltage expulsion fuse
Product Sub Type
None
Electrical data
Amperage Rating
7.5 A
Voltage rating
15 kV
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz
Rated frequency - max
60 Hz
Product specifications
Application
Primary side transformer protection, feeder protection, capacitor bank protection
Standard
ANSI
Type of termination
Fixed buttonhead
Technical data ETIM 9.0
Circuit breakers and fuses (EG000020) / Expulsion fuse-link, medium voltage (EC003611)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Expulsion fuse-link, medium voltage (ecl@ss13-27-14-21-28 [AGH830004])
Rated current
7.5 A
Rated voltage
15 kV
Voltage type
AC
Rated frequency
50 - 60 Hz
Release characteristic
K
Type of termination
Fixed buttonhead
Standard
ANSI
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 7.5 A |
| Rated voltage (EF000228) | 15 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | K |
| Type of termination (EF012540) | Fixed buttonhead |
| Standard (EF009322) | ANSI |
