View larger
Images are for illustrative purposes only. Please refer to data sheet for details

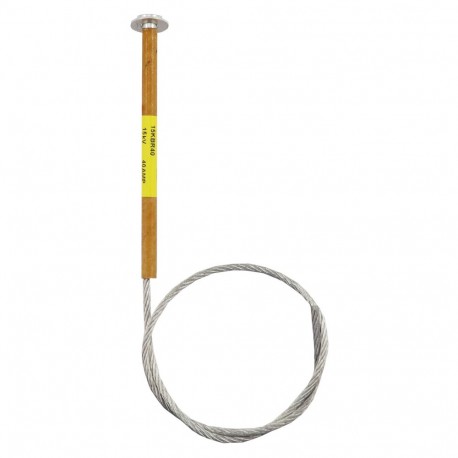

15KV 60AMP LINK 15KBR60 EATON ELECTRIC 15KV 60A REMOVABLE B/HEAD EXPULSION LINK
15KV 60AMP LINK
15KBR60
15KBR60
EATON - MOELLER
10 Pcs.
15KV 60A REMOVABLE B/HEAD EXPULSION LINK
Expulsion fuse-link, medium voltage, 60 A, AC 15 kV, 533 mm, ANSI, K fast, style BR termination
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15KBR60
Model Code
15KV 60A REMOVABLE B/HEAD EXPULSION LINK
EAN
5027590435512
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
104.1 g
Compliances
ANSI C37.42
Electrical data
Amperage Rating
60 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz
Product specification
Construction size
533 mm
Standard
ANSI
Type of termination
Removable buttonhead
Color
Yellow
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 60 A |
| Rated voltage (EF000228) | 15 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | K |
| Type of termination (EF012540) | Removable buttonhead |
| Standard (EF009322) | ANSI |
