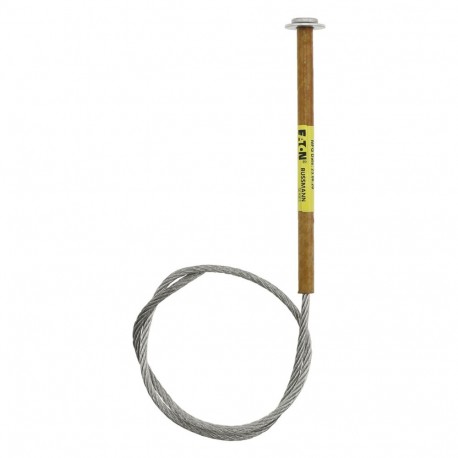

EATON - MOELLER 15KV 50A EXPULSION LINK 15KV 50A EXPULSION LINK 15KB50 EATON ELECTRIC Expulsion fuse-link, medium voltage, 50 A, AC 15 kV, 533 mm, A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 50A EXPULSION LINK 15KB50 EATON ELECTRIC Expulsion fuse-link, medium voltage, 50 A, AC 15 kV, 533 mm, A..

15KV 50A EXPULSION LINK

15KB50

15KB50

EATON - MOELLER

25 Pcs.

Expulsion fuse-link, medium voltage, 50 A, AC 15 kV, 533 mm, ANSI, K fast, style B termination 15KV 50A EXPULSION LINK Fuse, Expulsion link, medium voltage, 50 A, AC 15 kV, ANSI, K fast, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 15KV 50A EXPULSION LINK 15KB50 EATON ELECTRIC expulsion fuse-link provides essential fault protection within medium voltage electrical infrastructure. These replaceable links melt and clear under specified overload conditions to protect utility transformers and feeder lines. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 50 A
  • Rated voltage (EF000228): 15 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): K
  • Type of termination (EF012540): Fixed buttonhead
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15KB50
Model Code
15KV 50A EXPULSION LINK
EAN
5027590435291
Product Length/Depth
533 mm
Product Height
19 mm
Product Width
19 mm
Product Weight
39.64 g
Compliances
ANSI C37.42

Electrical data

Amperage Rating
50 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Fixed buttonhead
Color
Yellow
