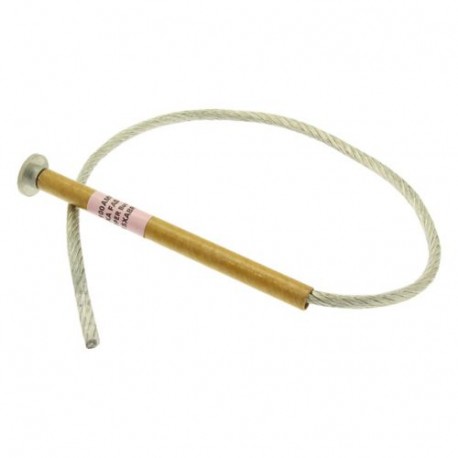

EATON - MOELLER 15KV 50AMP EXPULSION LINK 15KV 50AMP EXPULSION LINK 15XABR50 EATON ELECTRIC Cartridge fuse, expulsion, MT, 50 A, AC 15 kV, 533 mm, ANS.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 50AMP EXPULSION LINK 15XABR50 EATON ELECTRIC Cartridge fuse, expulsion, MT, 50 A, AC 15 kV, 533 mm, ANS..

15KV 50AMP EXPULSION LINK

15XABR50

15XABR50

EATON - MOELLER

25 Pcs.

Cartridge fuse, expulsion, MT, 50 A, AC 15 kV, 533 mm, ANSI, XA extra rapid 15KV 50AMP EXPULSION LINK Expulsion fuse-link, medium voltage, 50 A, AC 15 kV, 533 mm, ANSI, XA extra rapid, style BR termination Fuse, Expulsion fuse-link, medium voltage, 50 A, AC 15 kV, 533 mm, ANSI, XA extra rapid, fixed NEMA button head link with 1/4 inch UNF thread, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized in medium-voltage power distribution infrastructure, the Eaton Moeller 15KV 50AMP EXPULSION LINK serves as a reliable protective link designed to clear high-current faults and overloads safely. Expulsion fuses isolate faulted segments of a grid to maintain overall system integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 50 A
  • Rated voltage (EF000228): 15 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Type of termination (EF012540): Removable buttonhead
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15XABR50
EAN
5027590436830
UPC
051712520744
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
44.76 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
50 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type XA - This type of expulsion fuse link has an extra rapid characteristic. It is suitable for applications where a high degree of system protection is required at the expense of discrimination.
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Removable buttonhead
Color
Pink

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
