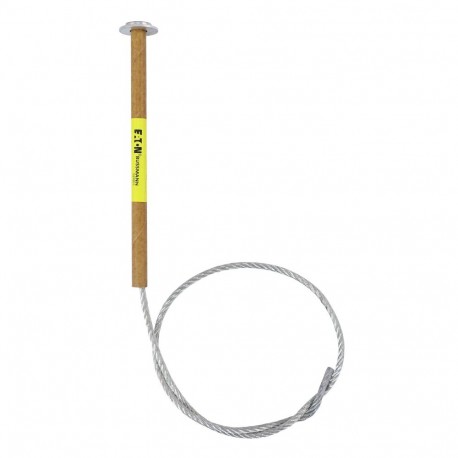

15KV 30AMP LINK 15KD30 15KD30 EATON ELECTRIC Expulsion fuse-link, medium voltage, 30 A, AC 15 kV, 533 mm, AN..
15KV 30AMP LINK 15KD30
15KD30
EATON - MOELLER
25 Pcs.
Expulsion fuse-link, medium voltage, 30 A, AC 15 kV, 533 mm, ANSI, K fast, style D termination
Ejection fuse cartridge, MT, 30 A, AC 15 kV, 533 mm, ANSI, K fast
Fuse, Expulsion fuse-link, medium voltage, 30 A, AC 15 kV, 533 mm, ANSI, K fast, Double tailed link without NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Expulsion fuse-link, medium voltage, 30 A, AC 15 kV, 533 mm, ANSI, K fast, style D termination
Fuse, Expulsion fuse-link, medium voltage, 30 A, AC 15 kV, 533 mm, ANSI, K fast, Double tailed link without NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Delivery program
Product range
Fuse
Basic function
Expulsion fuse-link
Field of application
medium voltage
Rated current [I]
30 A
Rated voltage
AC 15 kV
Size
533 mm
Description
Double tailed link without NEMA button head
Breaking Capacity
8 kA
usable for size/applications
protection of transformer primary side, feeder, capacitor bank
Release characteristic [class]
K fast
Standard/Approval
ANSI
Standards/Regulations
ANSI C37-42
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 30 A |
| Rated voltage (EF000228) | 15 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | K |
| Type of termination (EF012540) | Double tail |
| Standard (EF009322) | ANSI |
