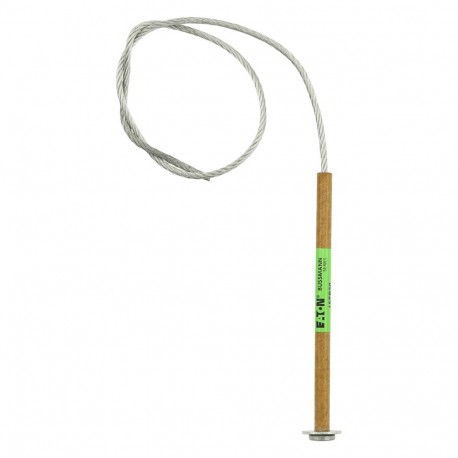

EATON - MOELLER 15KV 30A EXPULSION LINK 15KV 30A EXPULSION LINK 15TB30 EATON ELECTRIC Cartridge fuse, expulsion, MT, 30 A, AC 15 kV, 533 mm, ANSI a,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 30A EXPULSION LINK 15TB30 EATON ELECTRIC Cartridge fuse, expulsion, MT, 30 A, AC 15 kV, 533 mm, ANSI a,..

15KV 30A EXPULSION LINK

15TB30

15TB30

EATON - MOELLER

25 Pcs.

Cartridge fuse, expulsion, MT, 30 A, AC 15 kV, 533 mm, ANSI a, T slow 15KV 30A EXPULSION LINK Expulsion fuse-link, medium voltage, 30 A, AC 15 kV, 533 mm, ANSI, T slow, style B termination Fuse, Expulsion fuse-link, medium voltage, 30 A, AC 15 kV, 533 mm, ANSI, T slow, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller 15KV 30A EXPULSION LINK is a cartridge fuse, expulsion, MT unit engineered for medium voltage protection schemes. Technicians install these components in distribution cutouts to interrupt overcurrent events and isolate faulted network sections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 30 A
  • Rated voltage (EF000228): 15 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): T
  • Type of termination (EF012540): Fixed buttonhead
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15TB30
EAN
5027590435956
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
36.84 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
30 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Fixed buttonhead
Color
Green
