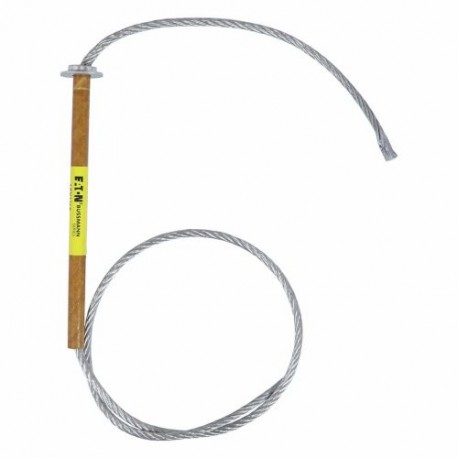

EATON - MOELLER 15KV 3 AMP EXPULSION LINK 15KV 3 AMP EXPULSION LINK 15KU3 EATON ELECTRIC Expulsion fuse-link, medium voltage, 3 A, AC 15 kV, 533 mm, A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 3 AMP EXPULSION LINK 15KU3 EATON ELECTRIC Expulsion fuse-link, medium voltage, 3 A, AC 15 kV, 533 mm, A..

15KV 3 AMP EXPULSION LINK

15KU3

15KU3

EATON - MOELLER

25 Pcs.

Expulsion fuse-link, medium voltage, 3 A, AC 15 kV, 533 mm, ANSI, K fast, style U termination 15KV 3 AMP EXPULSION LINK Fuse, Expulsion fuse-link, medium voltage, 3 A, AC 15 kV, 533 mm, ANSI, K fast, universal with slip off NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller 15KV 3 AMP EXPULSION LINK is a medium-voltage fuse-link manufactured to interrupt low-level fault currents and safeguard electrical distribution hardware. Universal terminations allow seamless integration into existing cutout hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 3 A
  • Rated voltage (EF000228): 15 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): K
  • Type of termination (EF012540): Universal
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15KU3
EAN
5027590435710
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
19.24 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
3 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Universal
Color
Yellow

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
