View larger
Images are for illustrative purposes only. Please refer to data sheet for details

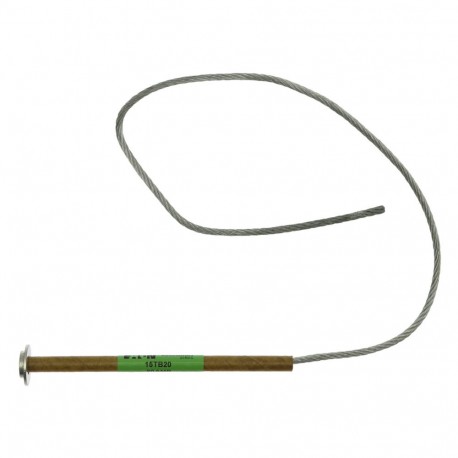

15KV 20A LK 15TB20 EATON ELECTRIC Expulsion fuse-link, medium voltage, 20 A, AC 15 kV, 533 mm, ANSI, T slow,..
15KV 20A LK
15TB20
15TB20
EATON - MOELLER
25 Pcs.
Expulsion fuse-link, medium voltage, 20 A, AC 15 kV, 533 mm, ANSI, T slow, style B termination
15KV 20A LK
Fuse, Expulsion fuse-link, medium voltage, 20 A, AC 15 kV, 533 mm, ANSI, T slow, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA
Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15TB20
EAN
5027590435925
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
36.4 g
Compliances
ANSI C37.42
Product specifications
Type
Medium Voltage Expulsion Fuse Link
Application
Primary side transformer protection, feeder protection, capacitor bank protection
Amperage Rating
20 A
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - max
60 Hz
Rated frequency - min
50 Hz
Release characteristic
T
Standard
ANSI
Type of termination
Fixed buttonhead
Voltage type
AC
Color
Green
Interrupt rating
8 kAIC
Construction size
533 mm
Voltage rating
15 kV
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 20 A |
| Rated voltage (EF000228) | 15 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Release characteristic (EF000889) | T |
| Type of termination (EF012540) | Fixed buttonhead |
| Standard (EF009322) | ANSI |
