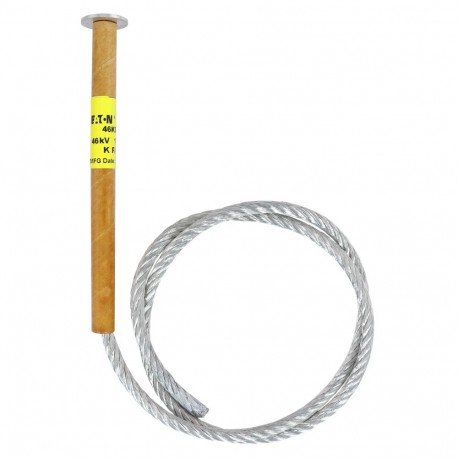

EATON - MOELLER 15KV 15A EXPULSION LINK 15KV 15A EXPULSION LINK 15TU15 EATON ELECTRIC Cartridge fuse, expulsion, MT, 15 A, AC 15 kV, 533 mm, ANSI a,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 15A EXPULSION LINK 15TU15 EATON ELECTRIC Cartridge fuse, expulsion, MT, 15 A, AC 15 kV, 533 mm, ANSI a,..

15KV 15A EXPULSION LINK

15TU15

15TU15

EATON - MOELLER

25 Pcs.

Cartridge fuse, expulsion, MT, 15 A, AC 15 kV, 533 mm, ANSI a, T slow 15KV 15A EXPULSION LINK Expulsion fuse-link, medium voltage, 15 A, AC 15 kV, 533 mm, ANSI, T slow, style U termination Fuse, Expulsion fuse-link, medium voltage, 15 A, AC 15 kV, 533 mm, ANSI, T slow, universal with slip off NEMA button head, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 15KV 15A EXPULSION LINK 15TU15 serves as a cartridge fuse, expulsion, MT designed to isolate overcurrent faults in medium-voltage electrical installations. These replaceable links are standard components in overhead drop-out cutouts across utility networks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 15 A
  • Rated voltage (EF000228): 15 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): T
  • Type of termination (EF012540): Universal
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15TU15
EAN
5027590436366
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
47.4 g
Compliances
ANSI C37.42

Electrical data

Amperage Rating
15 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Universal
Color
Green
