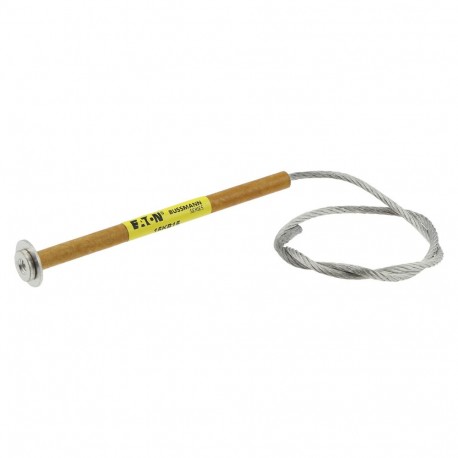

EATON - MOELLER 15KV 15A EXPULSION LINK 15KV 15A EXPULSION LINK 15KB15 EATON ELECTRIC Expulsion fuse-link, medium voltage, 15 A, AC 15 kV, 533 mm, A.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 15A EXPULSION LINK 15KB15 EATON ELECTRIC Expulsion fuse-link, medium voltage, 15 A, AC 15 kV, 533 mm, A..

15KV 15A EXPULSION LINK

15KB15

15KB15

EATON - MOELLER

25 Pcs.

Expulsion fuse-link, medium voltage, 15 A, AC 15 kV, 533 mm, ANSI, K fast, style B termination 15KV 15A EXPULSION LINK Fuse, Expulsion fuse-link, medium voltage, 15 A, AC 15 kV, 533 mm, ANSI, K fast, fixed NEMA button head link, protection of transformer primary side, feeder, capacitor bank, ANSI C37-42, Breaking Capacity 8 kA

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller 15KV 15A EXPULSION LINK provides reliable overcurrent protection for medium-voltage utility lines, interrupting abnormal fault currents before they damage connected assets. These components are standard elements in overhead distribution cutout assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 15 A
  • Rated voltage (EF000228): 15 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Release characteristic (EF000889): K
  • Type of termination (EF012540): Fixed buttonhead
  • Standard (EF009322): ANSI

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15KB15
Model Code
15KV 15A EXPULSION LINK
EAN
5027590435208
UPC
051712291699
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
36.2 g
Certifications
ANSI

Electrical data

Amperage Rating
15 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Fixed buttonhead
Color
Yellow

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
