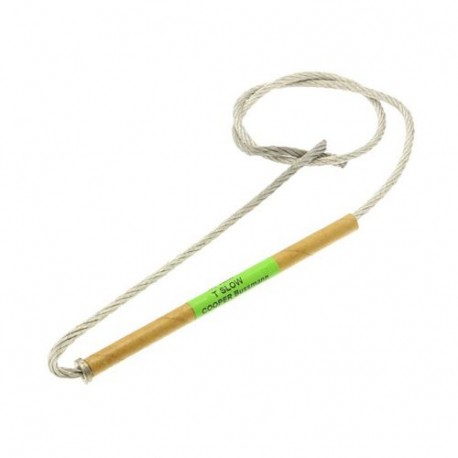

EATON - MOELLER 15KV 10AMP EXPULSION LINK 15KV 10AMP EXPULSION LINK 15TD10 EATON ELECTRIC Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 10AMP EXPULSION LINK 15TD10 EATON ELECTRIC Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm,..

15KV 10AMP EXPULSION LINK

15TD10

15TD10

EATON - MOELLER

25 Pcs.

Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, style 36 tag 15KV 10AMP EXPULSION LINK Expulsion fuse-link, medium voltage, 10 A, AC 15 kV, 533 mm, ANSI, T slow, style D termination

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Medium-voltage systems utilize components such as this Eaton Moeller 15KV 10AMP EXPULSION LINK for dependable overcurrent protection. Utility poles and distribution transformers depend on these elements to isolate faults and prevent widespread outages. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 15KV 10AMP EXPULSION LINK
  • Catalogue code: 15TD10
  • Catalogue title: 15KV 10AMP EXPULSION LINK 15TD10 EATON ELECTRIC Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm,..
  • Product description: General specifications Product Name Eaton Bussmann series medium voltage expulsion fuse Catalog Number 15TD10 EAN 5027590436199 Product Length/Depth 225 mm Product Height 76 mm Product Width 106 mm Product Weight 20.04 g
  • Manufacturer summary: Air fuse-link, medium voltage, 10 A, AC 36 kV, 50.8 x 565mm, back-up, BS, with striker, style 36 tag 15KV 10AMP EXPULSION LINK Expulsion fuse-link, medium voltage, 10 A, AC 15 kV, 533 mm, ANSI, T slow, style D terminatio

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15TD10
EAN
5027590436199
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
20.04 g
Certifications
ANSI/IEEE Std C37.42

Electrical data

Amperage Rating
10 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type T - Complies with ANSI C 37-42 requirements for slow acting T characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Double tail
Color
Green
