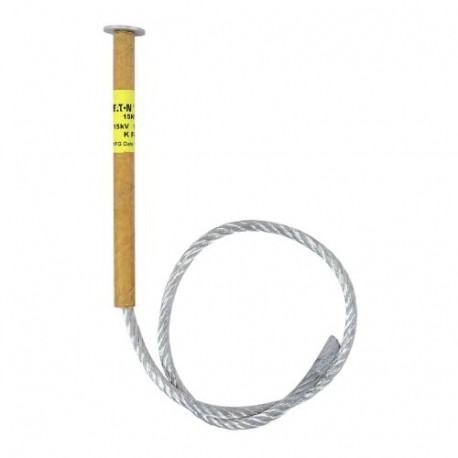

EATON - MOELLER 15KV 100A EXPULSION LINK 15KV 100A EXPULSION LINK 15KB100 EATON ELECTRIC Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 533 mm.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

15KV 100A EXPULSION LINK 15KB100 EATON ELECTRIC Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 533 mm..

15KV 100A EXPULSION LINK

15KB100

15KB100

EATON - MOELLER

10 Pcs.

Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 533 mm, ANSI, K fast, style B termination 15KV 100A EXPULSION LINK

Automation > Expulsion fuse-link, medium voltage
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for medium-voltage power distribution, this Eaton Moeller 15KV 100A EXPULSION LINK safeguards electrical infrastructure. Expulsion fuses interrupt high-level fault currents efficiently, ensuring the continued stability of utility lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: 15KV 100A EXPULSION LINK
  • Catalogue code: 15KB100
  • Catalogue title: 15KV 100A EXPULSION LINK 15KB100 EATON ELECTRIC Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 533 mm..
  • Product description: General specifications Product Name Eaton Bussmann series medium voltage expulsion fuse Catalog Number 15KB100 EAN 5027590435185 UPC 051712534130 Product Length/Depth 225 mm Product Height 76 mm Product Width 106 mm Prod
  • Manufacturer summary: Expulsion fuse-link, medium voltage, 100 A, AC 15 kV, 533 mm, ANSI, K fast, style B termination 15KV 100A EXPULSION LINK

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage expulsion fuse
Catalog Number
15KB100
EAN
5027590435185
UPC
051712534130
Product Length/Depth
225 mm
Product Height
76 mm
Product Width
106 mm
Product Weight
92.1 g
Compliances
ANSI C37.42

Electrical data

Amperage Rating
100 A
Voltage rating
15 kV
Voltage type
AC
Current characteristic type
Type K - Complies with ANSI C 37-42 requirements for fast acting K Characteristics
Rated frequency - min
50 Hz

Product specification

Construction size
533 mm
Standard
ANSI
Type of termination
Fixed buttonhead
Color
Yellow
