View larger
Images are for illustrative purposes only. Please refer to data sheet for details

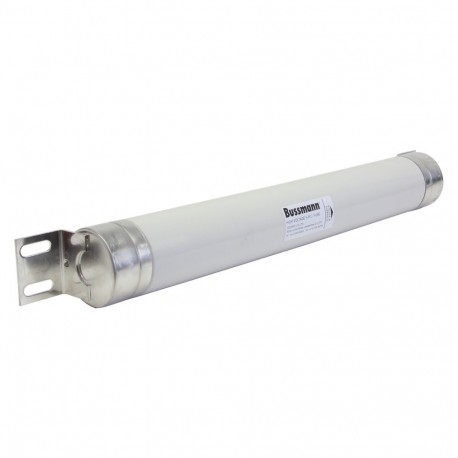

14.3KV 3.15AMP 3" AIR FUSE 14.3AFINF3.15 14-3AFINF3-15 EATON ELECTRIC 14.3KV 3.15AMP 3" AIR FUSE
14.3KV 3.15AMP 3" AIR FUSE
14.3AFINF3.15
14-3AFINF3-15
EATON - MOELLER
1 Pcs.
14.3KV 3.15AMP 3" AIR FUSE
14.3KV 3.15AMP 3" AIR FUSE - Air fuse-link, medium voltage, 3.15 A, AC 14.3 kV
Air fuse-link, medium voltage, 3.15 A, AC 14.3 kV, 565 x 76.2 mm, back-up, BS
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Air fuse-link, medium voltage, 3.15 A, AC 14.3 kV
Fuse, Air fuse-link, medium voltage, 3.15 A, AC 14.3 kV, 565 x 76.2 mm, back-up, BS, cylindrical with offset double bolted tags, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2692-1, Breaking Capacity 200 kA
Delivery program
Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
3.15 A
Rated voltage
AC 14.3 kV
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
15 A
Rated voltage
14.3 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
200 kA
Utilization category
Other
Application
Primary side transformer protection
Length
565 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
No
Standard
British Standard
Release characteristic
Other
Installation technique
Air
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 15 A |
| Rated voltage (EF000228) | 14.3 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 200 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 565 mm |
| Diameter (EF000551) | 76 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | No |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
