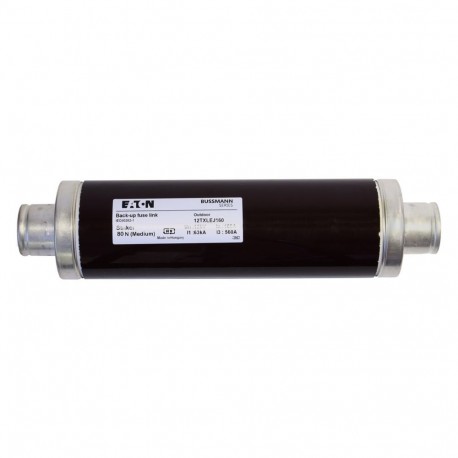

EATON - MOELLER 12KV 160AMP 3.5" DIN FUSE 12KV 160AMP 3.5" DIN FUSE 12TXLEJ160 EATON ELECTRIC Fuse-link, medium voltage, 160 A, AC 12 kV, 3.5", 88 x 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12KV 160AMP 3.5" DIN FUSE 12TXLEJ160 EATON ELECTRIC Fuse-link, medium voltage, 160 A, AC 12 kV, 3.5", 88 x 2..

12KV 160AMP 3.5" DIN FUSE

12TXLEJ160

12TXLEJ160

EATON - MOELLER

1 Pcs.

Fuse-link, medium voltage, 160 A, AC 12 kV, 3.5", 88 x 292 mm, back-up, DIN, with striker 12KV 160AMP 3.5" DIN FUSE Eaton Bussmann series medium voltage DIN fuse, 160 A, AC 12 kV, 3.5", 88 x 292 mm, backup, DIN, with striker Fuse, Fuse-link, medium voltage, 160 A, AC 12 kV, 3.5z, 88 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor or outdoor use, DIN 43625, VDE 0670 Part 4, IEC 60282-1, Breaking Capacity 63 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12TXLEJ160
EAN
5027590225793
UPC
051712186155
Product Length/Depth
360 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
3700 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
UL
VDE

Product specifications

Type
Fuse
Special features
Back-up, Transformer protection, Indoor or outdoor use
Application
Amperage Rating
160 A
Fuse indicator
With Striker
Fuse size
88 x 292 mm
Breaking capacity
63 kA
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class back-up
Barrels
1
Construction type
Bolt-on
Pre arc (I2T)
1.1 x 105
Resistance
4.3 Ohms
Watt losses
217 W
Fuse diameter
88 mm
Color
Brown
Interrupt rating
63 kAIC
Construction size
88 x 292 mm
Mounting method
Clip-in
Packaging type
Standard
Quantity
1
Voltage rating
12 kV
Fuse type
TXLEJ

ETIM for 12TXLEJ160 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 160 A
Rated voltage (EF000228) 12 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 63 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Primary side transformer protection
Length (EF001438) 360 mm
Diameter (EF000551) 88 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) DIN
Release characteristic (EF000889) Other
Installation technique (EF001474) Air
