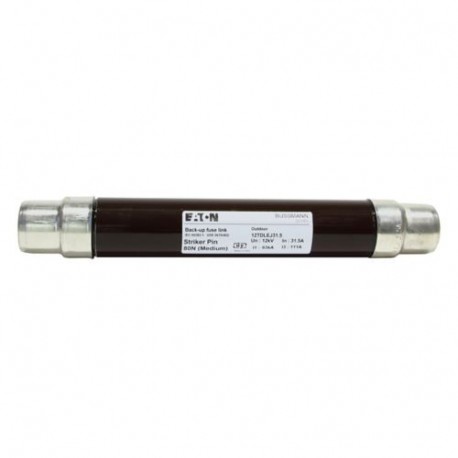

EATON - MOELLER 12TDLEJ31.5 12TDLEJ31.5 12TDLEJ31-5 EATON ELECTRIC Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2", 51 x 292 mm, back-up.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12TDLEJ31.5 12TDLEJ31-5 EATON ELECTRIC Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2", 51 x 292 mm, back-up..

12TDLEJ31.5

12TDLEJ315

12TDLEJ31-5

EATON - MOELLER

1 Pcs.

12KV 31.5A 2" DIN Brown Resin Seal Fuse 12TDLEJ31.5 - Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2", 51 x 292 mm, back-up, DIN, with striker Fuse, Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2z, 51 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor or outdoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 63 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 12TDLEJ31.5 fuse-link, medium voltage, provides primary side transformer protection in industrial and utility electrical switchboards. Back-up medium-voltage fuses ensure rapid clearing of high-magnitude fault currents.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 31.5 A
  • Rated voltage (EF000228): 12 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 63 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 292 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12TDLEJ31.5
EAN
5027590516426
UPC
051712186087
Product Length/Depth
292 mm
Product Height
54 mm
Product Width
51 mm
Product Weight
1700 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1

Electrical data

Amperage Rating
31.5 A
Voltage rating
12 kV
Voltage type
AC
Breaking capacity
63 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Resistance
23.4 Ohms
Watt losses
28 W

Product specifications

Fuse indicator
With Striker
Construction size
51 x 292 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354710 Fuse clip
