View larger
Images are for illustrative purposes only. Please refer to data sheet for details

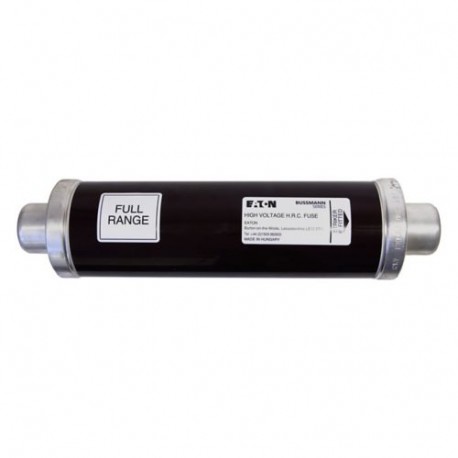

12KV 80AMP 88MM FULL RANGE FUSE 12FXLSJ80 EATON ELECTRIC Fuse-link, medium voltage, 40 A, AC 12 kV, 3", 77 x..
12KV 80AMP 88MM FULL RANGE FUSE
12FXLSJ80
12FXLSJ80
EATON - MOELLER
1 Pcs.
Fuse-link, medium voltage, 40 A, AC 12 kV, 3", 77 x 292 mm, full-range, DIN
12KV 80AMP 88MM FULL RANGE FUSE
Eaton Bussmann series medium voltage DIN fuse, 80 A, AC 12 kV, 3.5", 88 x 292 mm, fullrange, DIN, with striker
Fuse, Fuse-link, medium voltage, 80 A, AC 12 kV, 3.5z, 88 x 292 mm, Full range, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, Breaking Capacity 50 kA
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12FXLSJ80
EAN
5027590188449
Product Length/Depth
292 mm
Product Height
104 mm
Product Width
88 mm
Product Weight
4000 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
VDE 0670-4
IEC 60282-1
Certifications
IEC60282-1
Electrical data
Amperage Rating
80 A
Voltage rating
12 kV
Voltage type
AC
Breaking capacity
50 kA
Performance Cat According To IEC 60282-1
Full-range
Rated frequency - min
50 Hz
Class
Class full-range
Resistance
5.64 Ohms
Watt losses
72 W
Product specifications
Fuse indicator
With Striker
Construction size
88 x 292 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 80 A |
| Rated voltage (EF000228) | 12 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 50 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 292 mm |
| Diameter (EF000551) | 88 mm |
| Performance category according to IEC 60282-1 (EF012539) | Full range |
| With striker (EF008175) | Yes |
| Standard (EF009322) | DIN |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
