12KV 75AMP AIR FUSE 1131 12BFGHD75 EATON ELECTRIC Air fuse-link, medium voltage, 3 x 125A x 3, AC 12 kV, 76 ..

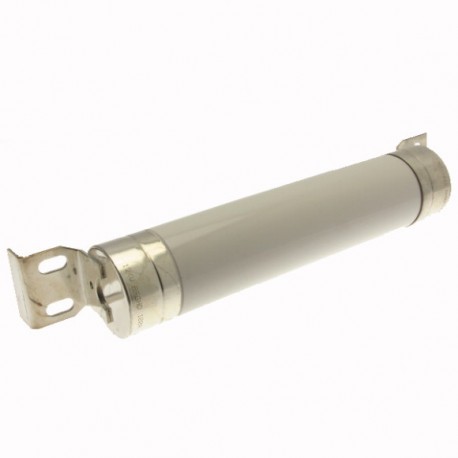

12KV 75AMP AIR FUSE 1131
12BFGHD75
EATON - MOELLER
3 Pcs.
Air fuse-link, medium voltage, 3 x 125A x 3, AC 12 kV, 76 x 359 mm, back-up, BS, with striker
fuse cartridge Air, MT, 75 A, AC 12 kV, BS TA3, 461 x 76.2 mm, back-up, BS, with striker
12BFGHD75 - Air fuse-link, medium voltage, 75 A, AC 12 kV, BS TA3, 461 x 76.2 mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 75 A, AC 12 kV, BS TA3, 461 x 76.2 mm, back-up, BS, with striker, cylindrical, offset bolted tags, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2962-1, Breaking Capacity 40 kA
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protect primary transformer circuits efficiently using the Eaton Moeller 12KV 75AMP AIR FUSE 1131. High-voltage air fuses deliver reliable breaking performance during overcurrent events in industrial switchgear. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 75 A
- Rated voltage (EF000228): 12 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 461 mm
- Diameter (EF000551): 76 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Air
More info
▲Air fuse-link, medium voltage, 75 A, AC 12 kV, BS TA3, 461 x 76.2 mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 75 A, AC 12 kV, BS TA3, 461 x 76.2 mm, back-up, BS, with striker, cylindrical, offset bolted tags, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2962-1, Breaking Capacity 40 kA
Delivery program
Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
75 A
Rated voltage
AC 12 kV
Construction size
BS TA3
Size
461 x 76.2 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
40 kA
usable for size/applications
protection of primary side transformers
used in fuse switch combination units, fuse bases and fuse switches
used in fuse switch combination units, fuse bases and fuse switches
Standard/Approval
BS
Shape
cylindrical
offset bolted tags
offset bolted tags
Standards/Regulations
BS2962-1
Technical data ETIM 7.0
Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
75 A
Rated voltage
12 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
40 kA
Utilization category
Other
Application
Primary side transformer protection
Length
461 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
