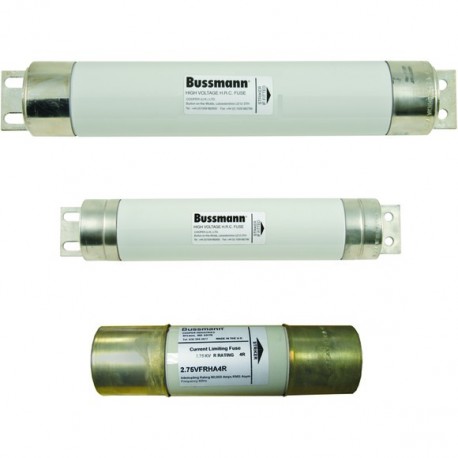

12KV 63AMP 3" 'F' AIR FUSE 12BFGHF63 EATON ELECTRIC 12KV 63AMP 3" 'F' AIR FUSE
12KV 63AMP 3" 'F' AIR FUSE
12BFGHF63
12BFGHF63
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Safeguard primary transformer windings against electrical overloads using the Eaton Moeller 12KV 63AMP 3" 'F' AIR FUSE, built for medium voltage power networks. These protective links are standard in electrical substations and switchgear assemblies to interrupt short circuits reliably. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 63 A
- Rated voltage (EF000228): 12 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 461 mm
- Diameter (EF000551): 76 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Air
