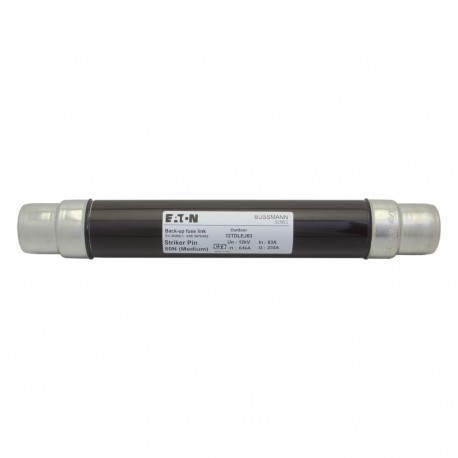

EATON - MOELLER 12TDLEJ63 12TDLEJ63 EATON ELECTRIC Fuse-link, medium voltage, 63 A, AC 12 kV, 2", 51 x 292 mm, back-up, DIN, with stri.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12TDLEJ63 EATON ELECTRIC Fuse-link, medium voltage, 63 A, AC 12 kV, 2", 51 x 292 mm, back-up, DIN, with stri..

12TDLEJ63

2809008

EATON - MOELLER

1 Pcs.

12KV 63Amp 2" DIN Brown Resin Seal Fuse Eaton Bussmann series medium voltage DIN fuse, 63 A, AC 12 kV, 2", 51 x 292 mm, backup, DIN, with striker Fuse, Fuse-link, medium voltage, 63 A, AC 12 kV, 2z, 51 x 292 mm, Back-up, DIN, with striker, transformer protection, indoor or outdoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 63 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12TDLEJ63
EAN
5027590245777
UPC
051712186117
Product Length/Depth
292 mm
Product Height
54 mm
Product Width
51 mm
Product Weight
1496 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
UL
VDE

Product specifications

Type
Fuse
Special features
Back-up, Transformer protection, Indoor or outdoor use
Application
Amperage Rating
63 A
Fuse indicator
With Striker
Fuse size
51 x 292 mm
Breaking capacity
63 kA
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class back-up
Barrels
1
Construction type
Bolt-on
Used with
270303 Fuse clip
A3354710 Fuse clip
Pre arc (I2T)
4.3 x 1000
Resistance
10.6 Ohms
Watt losses
60 W
Fuse diameter
51 mm
Color
Brown
Interrupt rating
63 kAIC
Construction size
51 x 292 mm
Mounting method
Clip-in
Packaging type
Standard
Quantity
1
Voltage rating
12 kV
Fuse type
TDLEJ

ETIM for 12TDLEJ63 Circuit breakers and fuses (EC003507)
Feature Name Feature Value
Rated current (EF000227) 63 A
Rated voltage (EF000228) 12 kV
Voltage type (EF000187) AC
Rated frequency (EF001663) 50 Hz
Breaking capacity (EF005617) 63 kA
Utilization category according to IEC 60269 (EF002572) Other
Application (EF000041) Primary side transformer protection
Length (EF001438) 292 mm
Diameter (EF000551) 51 mm
Performance category according to IEC 60282-1 (EF012539) Back-up
With striker (EF008175) Yes
Standard (EF009322) DIN
Release characteristic (EF000889) Other
Installation technique (EF001474) Air
