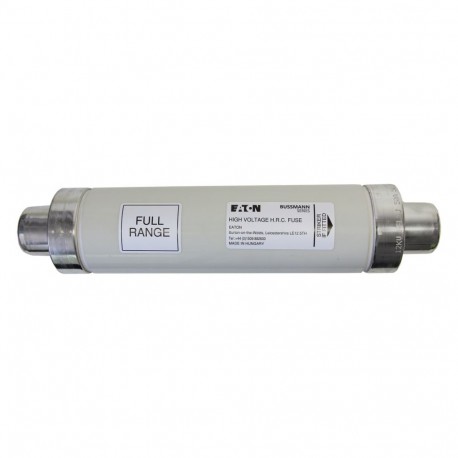

EATON - MOELLER 12KV 50Amp 3" Full Range Fuse 12KV 50Amp 3" Full Range Fuse 12FFLSJ50 EATON ELECTRIC Fuse-link, DIII, 50A, 500 V, DZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12KV 50Amp 3" Full Range Fuse 12FFLSJ50 EATON ELECTRIC Fuse-link, DIII, 50A, 500 V, DZ

12KV 50Amp 3" Full Range Fuse

12FFLSJ50

12FFLSJ50

EATON - MOELLER

3 Pcs.

Fuse-link, DIII, 50A, 500 V, DZ 12KV 50Amp 3" Full Range Fuse Eaton Bussmann series medium voltage DIN fuse, 50 A, AC 12 kV, 3", 77 x 292 mm, fullrange, DIN, with striker Fuse, Fuse-link, medium voltage, 50 A, AC 12 kV, 3z, 77 x 292 mm, Full range, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller 12KV 50Amp 3" Full Range Fuse is a full range fuse-link, DIII deployed in electrical distribution infrastructure. Fuse-links act as overcurrent protection devices, safely disconnecting sections of an installation when fault currents occur. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 50 A
  • Rated voltage (EF000228): 12 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 50 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 326 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Full range
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12FFLSJ50
EAN
5027590432443
UPC
051712794220
Product Length/Depth
326 mm
Product Height
76 mm
Product Width
76.2 mm
Product Weight
3160 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
IEC Rated

Electrical data

Amperage Rating
50 A
Voltage rating
12 kV
Voltage type
AC
Breaking capacity
50 kA
Performance Cat According To IEC 60282-1
Full-range
Rated frequency - min
50 Hz
Class
Class full-range
Resistance
14.8 Ohms
Watt losses
51 W

Product specifications

Fuse indicator
With Striker
Construction size
76 x 292 mm
Standard
DIN
Standard
DIN
Mounting method
Clip-in

Compatible fuse clip

Used with
270303 Fuse clip
A3354730 Fuse clip

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
