12KV 45AMP 2.5" OIL SEAL FUSE 12OHGMA45 EATON ELECTRIC Oil fuse-link, medium voltage, 45 A, AC 12 kV, BS2692..

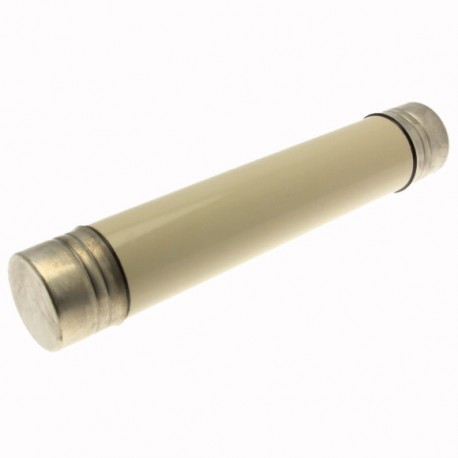

12KV 45AMP 2.5" OIL SEAL FUSE
12OHGMA45
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered by Eaton Moeller, the 12KV 45AMP 2.5" OIL SEAL FUSE operates as an oil-immersed medium-voltage fuse-link. These components provide robust primary protection for oil-filled transformers, safely interrupting high fault currents within sealed electrical enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 45 A
- Rated voltage (EF000228): 12 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 359 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Oil
More info
▲Delivery program
IEC
ESI
IEC 60282-1
ESI 12-8
