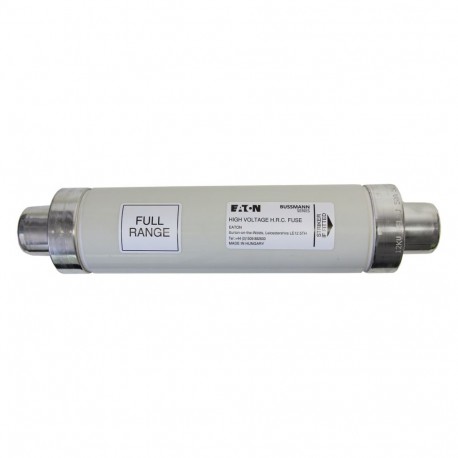

EATON - MOELLER 12KV 40Amp 3" Full Range Fuse 12KV 40Amp 3" Full Range Fuse 12FFLSJ40 EATON ELECTRIC Fuse-link, medium voltage, 40 A, AC 12 kV, 3", 77 x 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12KV 40Amp 3" Full Range Fuse 12FFLSJ40 EATON ELECTRIC Fuse-link, medium voltage, 40 A, AC 12 kV, 3", 77 x 2..

12KV 40Amp 3" Full Range Fuse

12FFLSJ40

12FFLSJ40

EATON - MOELLER

3 Pcs.

Fuse-link, medium voltage, 40 A, AC 12 kV, 3", 77 x 292 mm, full-range, DIN, with striker 12KV 40Amp 3" Full Range Fuse Eaton Bussmann series medium voltage DIN fuse, 40 A, AC 12 kV, 3", 77 x 292 mm, fullrange, DIN, with striker Fuse, Fuse-link, medium voltage, 40 A, AC 12 kV, 3z, 77 x 292 mm, Full range, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing versatile protection across diverse load profiles, this Eaton Moeller 12KV 40Amp 3" Full Range Fuse 12FFLSJ40 Fuse-link, medium voltage is built to DIN standards. Medium voltage fuses clear both low overloads and massive short circuits to prevent transformer failure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 40 A
  • Rated voltage (EF000228): 12 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 50 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 326 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Full range
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12FFLSJ40
EAN
5027590432436
UPC
051712794213
Product Length/Depth
326 mm
Product Height
76 mm
Product Width
76.2 mm
Product Weight
3160 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
IEC Rated

Product specifications

Type
Fuse
Application
Amperage Rating
40 A
Fuse indicator
With Striker
Fuse size
76 x 292 mm
Breaking capacity
50 kA
Installation technique
Air
Performance Cat According To IEC 60282-1
Full-range
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class full-range
Barrels
1
Construction type
Bolt-on
Used with
270303 Fuse clip
A3354730 Fuse clip
Element
Silver
Pre arc (I2T)
3.8 x 1000
Resistance
19.7 Ohms
Watt losses
42 W
Fuse diameter
76 mm
Interrupt rating
50 kAIC
Construction size
76 x 292 mm
Mounting method
Clip-in
Voltage rating
12 kV
Fuse type
FFLSJ

Product Datasheet
