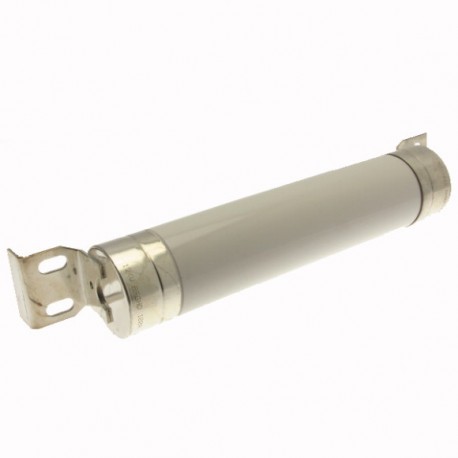

12KV 40AMP 3" 'D' AIR FUSE 12BFGHD40 EATON ELECTRIC Air fuse-link, medium voltage, 40 A, AC 12 kV, BS TA3, 4..
12KV 40AMP 3" 'D' AIR FUSE
12BFGHD40
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller 12KV 40AMP 3" 'D' AIR FUSE (part number 12BFGHD40) is a medium-voltage air fuse-link deployed to protect electrical distribution transformers from damaging overcurrent faults. Fuses in this category interrupt high fault levels to safeguard primary transformer windings and upstream circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 40 A
- Rated voltage (EF000228): 12 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 461 mm
- Diameter (EF000551): 76 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Air
More info
▲Delivery program
used in fuse switch combination units, fuse bases and fuse switches
offset bolted tags
