12KV 40AMP 2.5" OIL FUSE 12OEFMA40 EATON ELECTRIC Oil fuse-link, medium voltage, 40 A, AC 12 kV, BS2692 F01,..

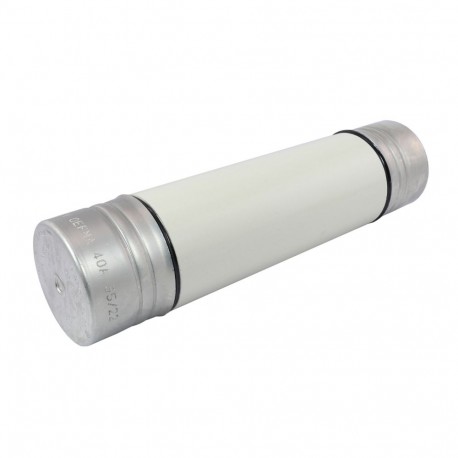

12KV 40AMP 2.5" OIL FUSE
12OEFMA40
12OEFMA40
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller 12KV 40AMP 2.5" OIL FUSE is an oil-filled medium-voltage component designed to protect electrical infrastructure from heavy fault conditions. These specialized fuses are commonly integrated into oil-insulated switchgear units to guard against primary transformer overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 40 A
- Rated voltage (EF000228): 12 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 40 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 254 mm
- Diameter (EF000551): 63.5 mm
- Performance category according to IEC 60282-1 (EF012539): Back-up
- With striker (EF008175): Yes
- Standard (EF009322): British Standard
- Installation technique (EF001474): Oil
More info
▲General specifications
ESI 12-8
IEC60282-1
