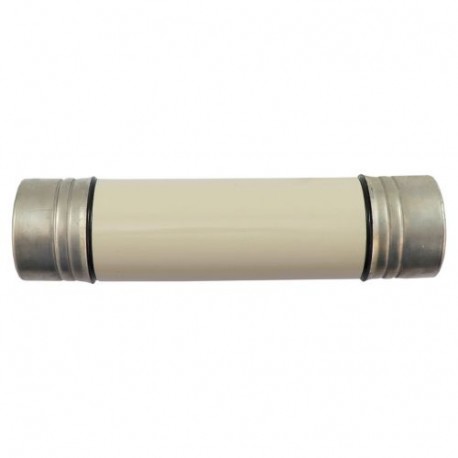

EATON - MOELLER 12KV 35.5AMP 2.5" OIL FUSE 12KV 35.5AMP 2.5" OIL FUSE 12OEFMA35.5 12OEFMA35-5 EATON ELECTRIC Oil fuse-link, medium voltage, 35.5 A, AC .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12KV 35.5AMP 2.5" OIL FUSE 12OEFMA35.5 12OEFMA35-5 EATON ELECTRIC Oil fuse-link, medium voltage, 35.5 A, AC ..

12KV 35.5AMP 2.5" OIL FUSE

12OEFMA355

12OEFMA35-5

EATON - MOELLER

3 Pcs.

Oil fuse-link, medium voltage, 35.5 A, AC 12 kV, BS2692 F01, 63.5 x 254 mm, back-up, BS, IEC, ESI, with striker 12KV 35.5AMP 2.5" OIL FUSE 12KV 35.5AMP 2.5" OIL FUSE - Oil fuse-link, medium voltage, 35.5 A, AC 12 kV, 40 kA, BS2692 F01, 63.5 x 254 mm, back-up, BS, IEC, ESI, with striker, oil-tight Fuse, Oil fuse-link, medium voltage, 35.5 A, AC 12 kV, BS2692 F01, 63.5 x 254 mm, back-up, BS, IEC, ESI, with striker, cylindrical, oil-tight, protection of primary side transformer, and oil-filled fuse switch combination unit, BS2692-1, IEC 60282-1, ESI 12-8, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 12KV 35.5AMP 2.5" OIL FUSE is an oil-immersed medium voltage fuse-link designed for sealed switchgear networks. This component offers primary side transformer protection, safely interrupting high-magnitude fault currents within liquid dielectrics.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 35.5 A
  • Rated voltage (EF000228): 12 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 254 mm
  • Diameter (EF000551): 63.5 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Oil

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage oil fuse
Catalog Number
12OEFMA35.5
EAN
5027590432603
Product Length/Depth
254 mm
Product Height
63.5 mm
Product Width
63.5 mm
Product Weight
1900 g
Compliances
BS 2692-1
ESI 12-8
Certifications
IEC60282-1
BS

Electrical data

Amperage Rating
35.5 A
Voltage rating
12 kV
Voltage type
AC
Breaking capacity
40 kA
Performance Cat According To IEC 60282-1
Back-up
Class
Class back-up

Product specification

Fuse indicator
with striker
Construction size
63.5 x 254 mm
Standard
British Standard
Standard
British Standard
