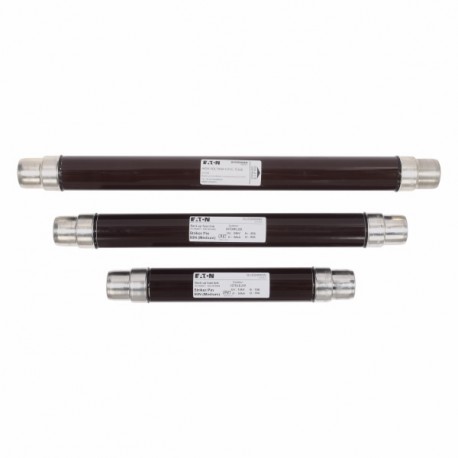

EATON - MOELLER 12FDLNJ31.5 12FDLNJ31.5 12FDLNJ31-5 EATON ELECTRIC Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2", 51 x 292 mm, full-ra.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12FDLNJ31.5 12FDLNJ31-5 EATON ELECTRIC Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2", 51 x 292 mm, full-ra..

12FDLNJ31.5

12FDLNJ315

12FDLNJ31-5

EATON - MOELLER

3 Pcs.

12KV 31.5Amp 2" Full Range Fuse N/S 12FDLNJ31.5 - Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2", 51 x 292 mm, full-range, DIN Fuse, Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2z, 51 x 292 mm, Full range, DIN, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 12FDLNJ31.5 is a medium voltage fuse-link engineered for comprehensive transformer protection in industrial power systems. Full-range clearing characteristics allow these devices to interrupt low-level overcurrents as effectively as high fault currents. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 31.5 A
  • Rated voltage (EF000228): 12 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 50 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 360 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Full range
  • With striker (EF008175): No
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲
Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2", 51 x 292 mm, full-range, DIN
Fuse, Fuse-link, medium voltage, 31.5 A, AC 12 kV, 2", 51 x 292 mm, Full range, DIN, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 50 kA

General specifications
Product name
Eaton Bussmann series medium voltage DIN fuse
Part no.
12FDLNJ31.5
EAN
5027590432306
Product Length/Depth
360 millimetre
Product height
51 millimetre
Product width
51 millimetre
Product weight
1613.333 gram
Compliances
VDE 0670-4
DIN 43625
Certifications
IEC60282-1
Product Tradename
None
Product Type
Medium voltage DIN fuse
Product Sub Type
None
Electrical data
Amperage Rating
31.5 A
Voltage rating
12 kV
Breaking capacity
50 kA
Performance Cat According To IEC 60282-1
Full-range
Rated frequency - min
50 Hz
Class
Class full-range
Product specifications
Application
transformer protection
indoor use
Fuse indicator
Non Indicating
Standard
DIN

Technical data ETIM 8.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Safety fuse systems (unspecified) ([email protected] [BAB265011])
Rated current
31.5 A
Rated voltage
12 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
50 kA
Utilization category
Other
Application
Primary side transformer protection
Length
360 mm
Diameter
51 mm
Performance category according to IEC 60282-1
Full-range
With striker
No
Standard
DIN
Release characteristic
Other
Installation technique
Air
