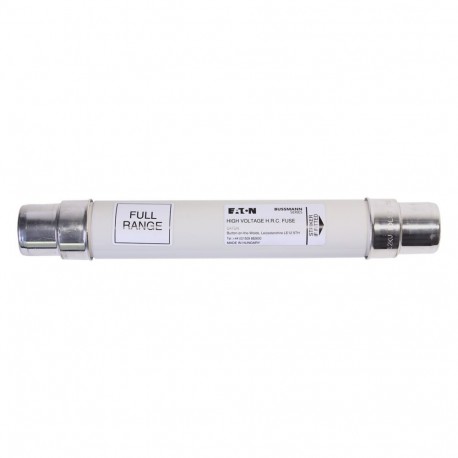

EATON - MOELLER 12KV 25Amp 2" Full Range Fuse 12KV 25Amp 2" Full Range Fuse 12FDLSJ25 EATON ELECTRIC Fuse-link, medium voltage, 25 A, AC 12 kV, 2", 51 x 2.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12KV 25Amp 2" Full Range Fuse 12FDLSJ25 EATON ELECTRIC Fuse-link, medium voltage, 25 A, AC 12 kV, 2", 51 x 2..

12KV 25Amp 2" Full Range Fuse

12FDLSJ25

12FDLSJ25

EATON - MOELLER

3 Pcs.

Fuse-link, medium voltage, 25 A, AC 12 kV, 2", 51 x 292 mm, full-range, DIN, with striker 12KV 25Amp 2" Full Range Fuse Eaton Bussmann series medium voltage DIN fuse, 25 A, AC 12 kV, 2", 51 x 292 mm, fullrange, DIN, with striker Fuse, Fuse-link, medium voltage, 25 A, AC 12 kV, 2z, 51 x 292 mm, Full range, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, IEC 60282-1, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Optimize network protection using this Eaton Moeller 12KV 25Amp 2" Full Range Fuse for medium-voltage transformer lines. Full-range protection devices handle low overloads and high fault currents across DIN-compliant systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 25 A
  • Rated voltage (EF000228): 12 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 50 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 292 mm
  • Diameter (EF000551): 51 mm
  • Performance category according to IEC 60282-1 (EF012539): Full range
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12FDLSJ25
EAN
5027590432351
UPC
051712664554
Product Length/Depth
292 mm
Product Height
51 mm
Product Width
51 mm
Product Weight
1496.667 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
IEC Rated

Product specifications

Type
Fuse
Application
Amperage Rating
25 A
Fuse indicator
With Striker
Fuse size
51 x 292 mm
Breaking capacity
50 kA
Installation technique
Air
Performance Cat According To IEC 60282-1
Full-range
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class full-range
Barrels
1
Construction type
Bolt-on
Used with
270303 Fuse clip
A3354710 Fuse clip
Element
Silver
Resistance
31.2 Ohms
Watt losses
26 W
Fuse diameter
51 mm
Interrupt rating
50 kAIC
Construction size
51 x 292 mm
Packaging type
Standard
Voltage rating
12 kV
Fuse type
FDLSJ
