View larger

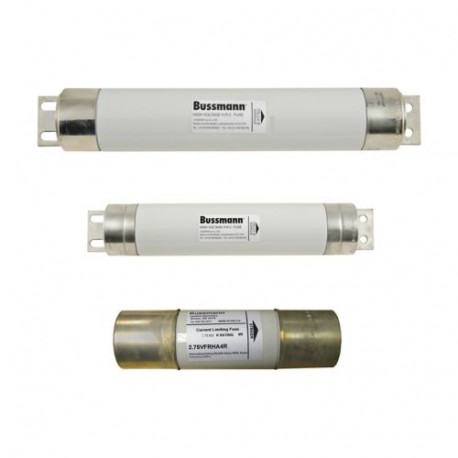

Images are for illustrative purposes only. Please refer to data sheet for details
12KV 25AMP 2" '40' AIR FUSE 12BDGH4025 EATON ELECTRIC 12KV 25AMP 2" '40' AIR FUSE
12KV 25AMP 2" '40' AIR FUSE
12BDGH4025
12BDGH4025
EATON - MOELLER
3 Pcs.
12KV 25AMP 2" '40' AIR FUSE
Air fuse-link, medium voltage, 25 A, AC 12 kV, 51 x 360 mm, back-up, BS, with striker, style 40 tags
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage BS air fuse
Catalog Number
12BDGH4025
EAN
5027590431002
Product Length/Depth
359 mm
Product Height
50.8 mm
Product Width
50.8 mm
Product Weight
2100 g
Certifications
CE
Product specifications
Type
Fuse
Application
Primary side transformer protection
Amperage Rating
25 A
Fuse indicator
With Striker
Fuse size
51 x 359 mm
Breaking capacity
40 kA
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
British Standard
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class back-up
Fuse diameter
51 mm
Interrupt rating
40 kAIC
Construction size
51 x 359 mm
Mounting method
Clip-in
Voltage rating
12 kV
Fuse type
BDGH
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 25 A |
| Rated voltage (EF000228) | 12 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 40 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 359 mm |
| Diameter (EF000551) | 51 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | Yes |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
