12KV 20Amp 2" Full Range Fuse 12FDLSJ20 EATON ELECTRIC Fuse-link, medium voltage, 20 A, AC 12 kV, 2", 51 x 2..

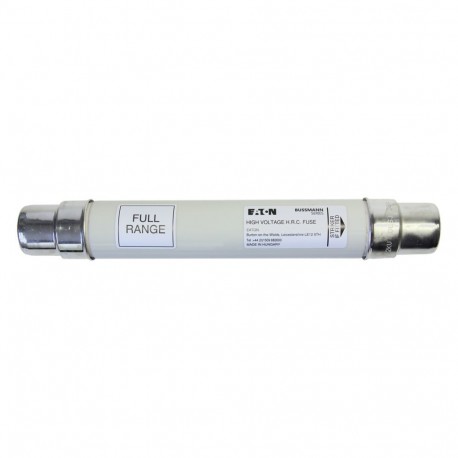

12KV 20Amp 2" Full Range Fuse
12FDLSJ20
12FDLSJ20
EATON - MOELLER
3 Pcs.
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller 12KV 20Amp 2" Full Range Fuse is a medium voltage fuse-link designed to protect electrical transformers from sustained overcurrents and short circuits. Full range protective elements clear both low and high fault currents reliably. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated current (EF000227): 20 A
- Rated voltage (EF000228): 12 kV
- Voltage type (EF000187): AC
- Rated frequency (EF001663): 50 Hz
- Breaking capacity (EF005617): 50 kA
- Application (EF000041): Primary side transformer protection
- Length (EF001438): 292 mm
- Diameter (EF000551): 51 mm
- Performance category according to IEC 60282-1 (EF012539): Full range
- With striker (EF008175): Yes
- Standard (EF009322): DIN
- Installation technique (EF001474): Air
More info
▲General specifications
VDE 0670-4
IEC 60282-1
Electrical data
Product specifications
Compatible fuse clip
A3354710 Fuse clip
