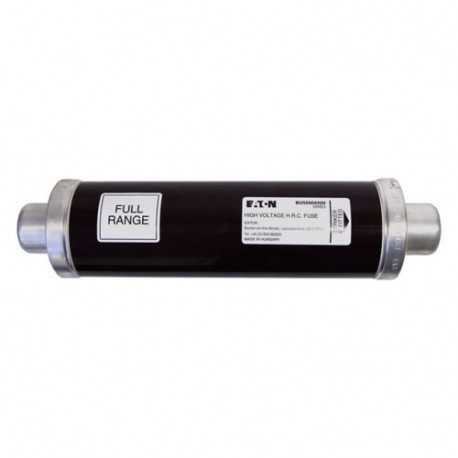

12KV 16Amp 2" 'A' DIN Fuse N/S 12SDLNA16 EATON ELECTRIC Fuse-link, medium voltage, 16 A, AC 12 kV, 2", 51 x ..
12KV 16Amp 2" 'A' DIN Fuse N/S
12SDLNA16
12SDLNA16
EATON - MOELLER
3 Pcs.
Fuse-link, medium voltage, 16 A, AC 12 kV, 2", 51 x 292 mm, back-up, DIN
12KV 16Amp 2" 'A' DIN Fuse N/S
Fuse, Fuse-link, medium voltage, 16 A, AC 12 kV, 2z, 51 x 292 mm, Back-up, DIN, indoor use
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12SDLNA16
EAN
5027590433051
Product Length/Depth
294 mm
Product Height
51.3 mm
Product Width
51.3 mm
Product Weight
1513.333 g
Certifications
DIN
Product specifications
Type
Fuse
Application
indoor use
Amperage Rating
16 A
Fuse indicator
Non Indicating
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
No
Class
Class back-up
Fuse diameter
51 mm
Construction size
51 x 292 mm
Voltage rating
12 kV
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 16 A |
| Rated voltage (EF000228) | 12 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 294 mm |
| Diameter (EF000551) | 51 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | No |
| Standard (EF009322) | DIN |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
