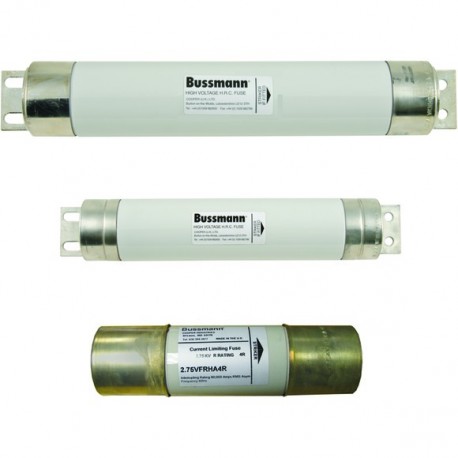

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
12KV 125AMP 3" '6B' AIR FUSE 12AKGH6B125 EATON ELECTRIC 12KV 125AMP 3" '6B' AIR FUSE
12KV 125AMP 3" '6B' AIR FUSE
12AKGH6B125
12AKGH6B125
EATON - MOELLER
3 Pcs.
12KV 125AMP 3" '6B' AIR FUSE
Air fuse-link, medium voltage, 125 A, AC 12 kV, 76 x 360 mm, back-up, BS, with striker, style 6B tags
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage BS air fuse
Catalog Number
12AKGH6B125
EAN
5027590430500
Product Length/Depth
359 mm
Product Height
76.2 mm
Product Width
76.2 mm
Product Weight
1339.333 g
Certifications
BS 2692-1
Electrical data
Amperage Rating
125 A
Voltage rating
12 kV
Voltage type
AC
Breaking capacity
20 kA
Performance Cat According To IEC 60282-1
Back-up
Rated frequency - min
50 Hz
Class
Class back-up
Product specification
Fuse indicator
With Striker
Construction size
76 x 359 mm
Standard
British Standard
Standard
British Standard
Mounting method
Clip-in
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 125 A |
| Rated voltage (EF000228) | 12 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 20 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 359 mm |
| Diameter (EF000551) | 76 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | Yes |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
