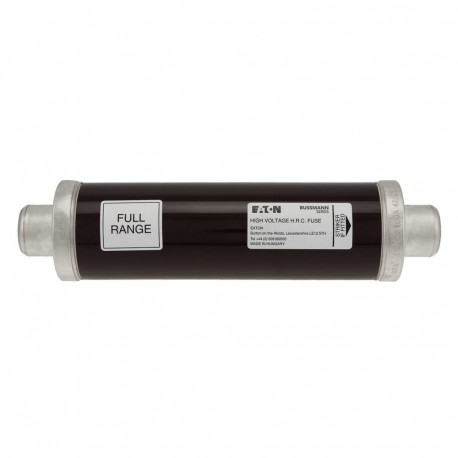

12KV 100AMP 88MM FULL RANGE FUSE

12FXLSJ100

12FXLSJ100

EATON - MOELLER

1 Pcs.

12KV 100AMP 88MM FULL RANGE FUSE Eaton Bussmann series medium voltage DIN fuse, 100 A, AC 12 kV, 3.5", 88 x 292 mm, fullrange, DIN, with striker Fuse, Fuse-link, medium voltage, 100 A, AC 12 kV, 3.5z, 88 x 292 mm, Full range, DIN, with striker, transformer protection, indoor use, DIN 43625, VDE 0670 Part 4, VDE 0670 Part 402, Breaking Capacity 50 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for comprehensive fault interruption, the Eaton Moeller 12KV 100AMP 88MM FULL RANGE FUSE delivers full range primary protection for medium voltage power transformers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 100 A
  • Rated voltage (EF000228): 12 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 50 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 292 mm
  • Diameter (EF000551): 88 mm
  • Performance category according to IEC 60282-1 (EF012539): Full range
  • With striker (EF008175): Yes
  • Standard (EF009322): DIN
  • Installation technique (EF001474): Air

More info

▲

General specifications

Product Name
Eaton Bussmann series medium voltage DIN fuse
Catalog Number
12FXLSJ100
EAN
5027590116831
Product Length/Depth
292 mm
Product Height
104 mm
Product Width
88 mm
Product Weight
4000 g
Compliances
DIN 43625
VDE 0670-4
IEC 60282-1
Certifications
IEC60282-1

Product specifications

Type
Fuse
Application
Amperage Rating
100 A
Fuse indicator
With Striker
Fuse size
88 x 292 mm
Breaking capacity
50 kA
Installation technique
Air
Performance Cat According To IEC 60282-1
Full-range
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
DIN
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class full-range
Pre arc (I2T)
4.2 x 10000
Resistance
7.94 Ohms
Watt losses
82 W
Fuse diameter
88 mm
Interrupt rating
50 kAIC
Construction size
88 x 292 mm
Mounting method
Clip-in
Voltage rating
12 kV
Fuse type
FXLSJ

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
