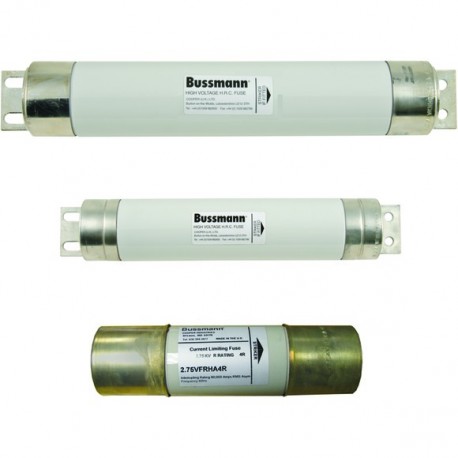

12KV 100AMP 3" 'F' AIR FUSE 12BFGHF100 EATON ELECTRIC 12KV 100AMP 3" 'F' AIR FUSE
12KV 100AMP 3" 'F' AIR FUSE
12BFGHF100
12BFGHF100
EATON - MOELLER
3 Pcs.
12KV 100AMP 3" 'F' AIR FUSE
Eaton Bussmann series medium voltage BS air fuse, 12 kV, 100 A, 40 kA, 76 x 461 mm, With Striker
Air fuse-link, medium voltage, 100 A, AC 12 kV, 76 x 461 mm, back-up, BS, with striker, style F tags
Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series medium voltage BS air fuse
Catalog Number
12BFGHF100
EAN
5027590431989
Product Length/Depth
461 mm
Product Height
76 mm
Product Width
76 mm
Product Weight
4200 g
Compliances
BS 2692-1
Certifications
KEMA Certified
ASTA
ASTA
Product specifications
Type
Fuse
Application
Amperage Rating
100 A
Fuse indicator
With Striker
Fuse size
76 x 461 mm
Breaking capacity
40 kA
Installation technique
Air
Performance Cat According To IEC 60282-1
Back-up
Product application
Primary side transformer protection
Rated frequency - max
50 Hz
Rated frequency - min
50 Hz
Release characteristic
Other
Standard
British Standard
Utilization category
Other
Voltage type
AC
With striker
Yes
Class
Class back-up
Used with
A3354730 Fuse clip
Pre arc (I2T)
1.1 x 103
Resistance
6.88 ohms
Fuse diameter
76 mm
Interrupt rating
40 kAIC
Construction size
76 x 461 mm
Mounting method
Clip-in
Voltage rating
12 kV
Fuse type
BFGH
| Feature Name | Feature Value |
|---|---|
| Rated current (EF000227) | 100 A |
| Rated voltage (EF000228) | 12 kV |
| Voltage type (EF000187) | AC |
| Rated frequency (EF001663) | 50 Hz |
| Breaking capacity (EF005617) | 40 kA |
| Utilization category according to IEC 60269 (EF002572) | Other |
| Application (EF000041) | Primary side transformer protection |
| Length (EF001438) | 461 mm |
| Diameter (EF000551) | 76 mm |
| Performance category according to IEC 60282-1 (EF012539) | Back-up |
| With striker (EF008175) | Yes |
| Standard (EF009322) | British Standard |
| Release characteristic (EF000889) | Other |
| Installation technique (EF001474) | Air |
