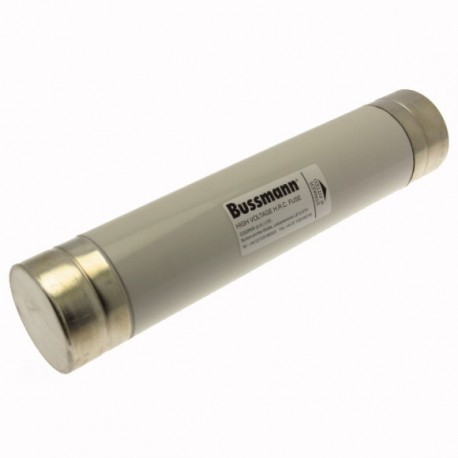

EATON - MOELLER 12KV 16AMP 3" 'A' AIR FUSE 12KV 16AMP 3" 'A' AIR FUSE 12BFGHA16 12KV 31.5A 3" AIR 1618 FUSE 12BFGHA16 EATON ELECTRIC Air fuse-link, med.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

12KV 16AMP 3" 'A' AIR FUSE 12BFGHA16 12KV 31.5A 3" AIR 1618 FUSE 12BFGHA16 EATON ELECTRIC Air fuse-link, med..

12KV 16AMP 3" 'A' AIR FUSE

12BFGHA16

12KV 31.5A 3" AIR 1618 FUSE 12BFGHA16

EATON - MOELLER

3 Pcs.

Air fuse-link, medium voltage, 16 A, AC 12 kV, 359 x 76.2 mm, back-up, BS, with striker 12KV 16AMP 3" 'A' AIR FUSE 12KV 16AMP 3" 'A' AIR FUSE - Air fuse-link, medium voltage, 16 A, AC 12 kV, 40 kA, 3", 359 x 76.2 mm, back-up, BS, with striker Fuse, Air fuse-link, medium voltage, 16 A, AC 12 kV, 359 x 76.2 mm, back-up, BS, with striker, cylindrical, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2962-1, Breaking Capacity 40 kA

Automation > Medium-/high voltage fuse
Bussmann Series Medium Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Safeguard medium voltage electrical distribution transformers with the Eaton Moeller 12KV 16AMP 3" 'A' AIR FUSE, an air fuse-link built for robust fault interruption. These components are installed in switchgear systems to isolate overcurrent conditions and protect electrical infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated current (EF000227): 16 A
  • Rated voltage (EF000228): 12 kV
  • Voltage type (EF000187): AC
  • Rated frequency (EF001663): 50 Hz
  • Breaking capacity (EF005617): 40 kA
  • Application (EF000041): Primary side transformer protection
  • Length (EF001438): 359 mm
  • Diameter (EF000551): 76 mm
  • Performance category according to IEC 60282-1 (EF012539): Back-up
  • With striker (EF008175): Yes
  • Standard (EF009322): British Standard
  • Installation technique (EF001474): Air

More info

▲
Air fuse-link, medium voltage, 16 A, AC 12 kV, 40 kA, 3", 359 x 76.2 mm, back-up, BS, with striker
Fuse, Air fuse-link, medium voltage, 16 A, AC 12 kV, 359 x 76.2 mm, back-up, BS, with striker, cylindrical, protection of primary side transformers, used in fuse switch combination units, fuse bases and fuse switches, BS2962-1, Breaking Capacity 40 kA

Delivery program

Product range
Fuse
Basic function
Air fuse-link
Field of application
medium voltage
Rated current [I]
16 A
Rated voltage
AC 12 kV
Construction size
3"
Size
359 x 76.2 mm
Utilization category
back-up
Status indicator
with striker
Breaking Capacity
40 kA
usable for size/applications
protection of primary side transformers
used in fuse switch combination units, fuse bases and fuse switches
Standard/Approval
BS
Shape
cylindrical
Standards/Regulations
BS2962-1

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Medium-/high voltage fuse (EC003507)
Rated current
16 A
Rated voltage
12 kV
Voltage type
AC
Rated frequency
50 - 50 Hz
Breaking capacity
40 kA
Utilization category
Other
Application
Primary side transformer protection
Length
359 mm
Diameter
76 mm
Performance category according to IEC 60282-1
Back-up
With striker
Yes
Standard
British Standard
Release characteristic
Other
Installation technique
Air
