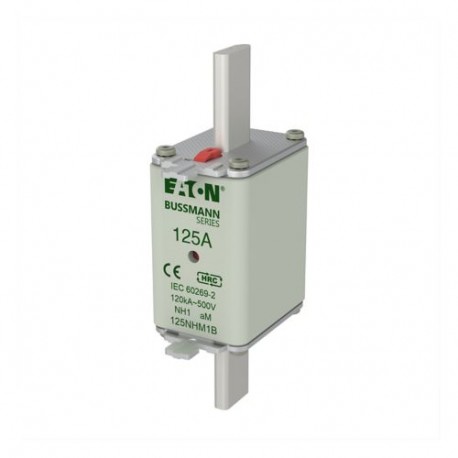

EATON - MOELLER NH FUSE 125AMP 500V aM SIZE 1 NH FUSE 125AMP 500V aM SIZE 1 125NHM1B EATON ELECTRIC Fuse-link, LV, 125 A, AC 500 V, NH1, aM, IEC, dual ind.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 125AMP 500V aM SIZE 1 125NHM1B EATON ELECTRIC Fuse-link, LV, 125 A, AC 500 V, NH1, aM, IEC, dual ind..

NH FUSE 125AMP 500V aM SIZE 1

125NHM1B

125NHM1B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 125 A, AC 500 V, NH1, aM, IEC, dual indicator, live gripping lugs NH FUSE 125AMP 500V aM SIZE 1 Fuse, Fuse-link, low voltage, 125 A, AC 500 V, NH1, aM, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
125NHM1B
EAN
5027590430142
Product Length/Depth
135 mm
Product Height
63 mm
Product Width
40 mm
Product Weight
407.3333333 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Product specifications

Type
Fuse
Application
industrial
Amperage Rating
125 A
Fitted with:
Metal gripping lugs
Fuse size
NH1
Current type
AC
Breaking capacity
120 kA
Rated switching capacity
120 kA
Rated voltage AC
500 V
Class
Class aM
Fuse type
Square body with knife blade contact
Accessory/spare part type
SDL-1 Solid link
FEH- Fuse extraction handle
SD12-SK Shroud kit
SD00-PB 2-phase barriers
TD1-IP20 Triple pole protection kit
Utilization category
aM (switchgear protection)
Interrupt rating
120 kAIC
Fuse indicator
Combination fuse status indicator
Insulated metal gripping lugs (IMGL)
No
Watt losses
8.8 W
Connection
Blade end
Construction
NH1
Construction size
NH1
Fuse shape
Knife blade contacts
Square body
Voltage type
AC
Suitable for
SD1-D Single pole NH Fuse base
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
Material
Ceramic body
Quantity
3
Voltage rating
500 V
Rated switching capacity AC
120 kA

ETIM for 125NHM1B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH1
Voltage type (EF000187) AC
Rated current (EF000227) 125 A
Rated voltage AC (EF007682) 500 V
Rated switching capacity AC (EF017698) 120 kA
Utilization category according to IEC 60269 (EF002572) aM (switchgear protection)
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) No
Power loss at rated current (EF012389) 8.8 W

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
