View larger
Images are for illustrative purposes only. Please refer to data sheet for details

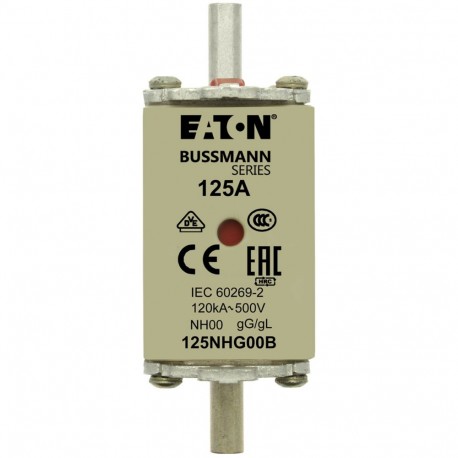

NH FUSE 125A 500V GG/GL SIZE 00 125NHG00B EATON ELECTRIC cartridge fuse, BT, 125 a, AC 500 V, NH00, gL/gG, I..
NH FUSE 125A 500V GG/GL SIZE 00
125NHG00B
125NHG00B
EATON - MOELLER
3 Pcs.
cartridge fuse, BT, 125 a, AC 500 V, NH00, gL/gG, IEC, indicator dual, metal terminals
NH FUSE 125A 500V GG/GL SIZE 00
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 125A, 120 kAIC, Combination fuse status indicator,Blade end connection, Class C gL/gG, Square-body with knife blade contact, Metal plated copper contact plate
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
125NHG00B
Model Code
NH FUSE 125A 500V GG/GL SIZE 00
EAN
5027590429894
UPC
051712625876
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
182 g
Compliances
CE Marked
RoHS Compliant
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
125 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH02
Insulated metal gripping lugs (IMGL)
No
Accessories
Suitable for
Microswitch BVL50
| Feature Name | Feature Value |
|---|---|
| Fuse construction type according to IEC 60269 (EF015865) | NH00 |
| Voltage type (EF000187) | AC |
| Rated current (EF000227) | 125 A |
| Rated voltage AC (EF007682) | 500 V |
| Utilization category according to IEC 60269 (EF002572) | gG (cable protection/equipment protection) |
| Type of fuse status indicator (EF004473) | Combination fuse status indicator |
| Insulated metal gripping lugs (IMGL) (EF012538) | No |
