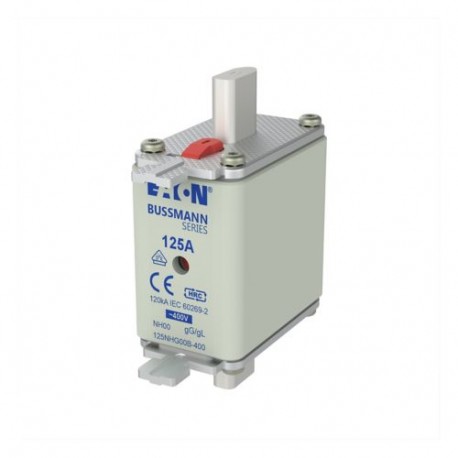

EATON - MOELLER NH FUSE 125A 400V GG/GL SIZE 00 NH FUSE 125A 400V GG/GL SIZE 00 125NHG00B-400 EATON ELECTRIC Fuse-link, LV, 125 A, AC 500 V, NH00, gL/gG, IE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 125A 400V GG/GL SIZE 00 125NHG00B-400 EATON ELECTRIC Fuse-link, LV, 125 A, AC 500 V, NH00, gL/gG, IE..

NH FUSE 125A 400V GG/GL SIZE 00

125NHG00B400

125NHG00B-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 125 A, AC 500 V, NH00, gL/gG, IEC, dual indicator, live gripping lugs 125A 400V NH00 Fuse with Live Lugs Fuse, fuse-link, low voltage, 125 A, AC 400 V, NH00, gL/gG, IEC, dual (combination) indicator system, square-body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2. Breaking capacity 120 kA

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller fuse-link is deployed in electrical enclosures to intercept fault currents and protect installation cables from thermal and mechanical strain. These components play a fundamental role in maintaining the integrity of low-voltage electrical distribution networks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH00
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 125 A
  • Rated voltage AC (EF007682): 400 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 7 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
125NHG00B-400
EAN
5027590429900
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
201 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
125 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH00
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
