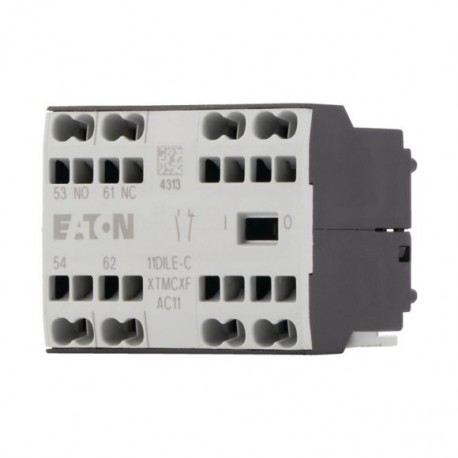

11DILE-C 230257 Y7-230257 EATON ELECTRIC Auxiliary contact, 1N/O+1N/C, surface mounting, spring clamp connec..
11DILE-C
230257
Y7-230257
EATON - MOELLER
1 Pcs.
Automation > Auxiliary contact block
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller 11DILE-C auxiliary contact provides secondary switching capability for industrial control setups, allowing main contactors to signal auxiliary circuits and indicator lights. Devices of this type mount directly onto switching equipment to expand control logic configurations in automation panels.
Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 1
- Number of contacts as normally closed contact (EF008255): 1
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 4 A
- Type of electric connection (EF003961): Spring clamp connection
- Model (EF000010): Clip-on
- Mounting method (EF000003): Front fastening
More info
▲General specifications
UL 508
CSA-C22.2 No. 14-05
IEC/EN 60947
UL
UL File No.: E29184
CE
CSA Class No.: 3211-03
IEC/EN 60947-4-1
UL Category Control No.: NKCR
VDE 0660
CSA File No.: 012528
Features & Functions
Switching elements according to EN 50005
General
150,000 Operations (at 240 V, DC, L/R = 50 ms: 2 contacts in series 0.5 A)
200,000 Operations (at 240 V, AC-15)
20,000,000 Operations (DC operated)
10 g, N/O contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
1 x (1 - 2.5) mm²
1 x (1 - 2.5) mm²
Electrical rating
2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
300 V AC, Between coil and auxiliary contacts, According to EN 61140
Short-circuit rating
Conventional thermal current Ith
Switching capacity
0.5 A, 250 V DC, (UL/CSA)
A600, AC operated (UL/CSA)
Contacts
42 in combination with DILER-31(-G)
33 in combination with DILER-22
