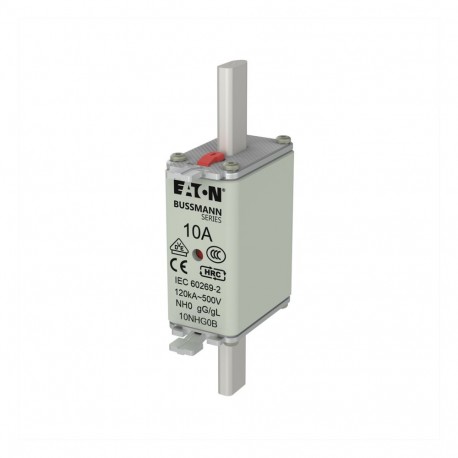

EATON - MOELLER NH FUSE 10A 500V GG/GL SIZE 0 NH FUSE 10A 500V GG/GL SIZE 0 10NHG0B EATON ELECTRIC cartridge fuse, BT 10 a, AC 500 V, NH0, gL/gG, IEC, ind.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 10A 500V GG/GL SIZE 0 10NHG0B EATON ELECTRIC cartridge fuse, BT 10 a, AC 500 V, NH0, gL/gG, IEC, ind..

NH FUSE 10A 500V GG/GL SIZE 0

10NHG0B

10NHG0B

EATON - MOELLER

3 Pcs.

cartridge fuse, BT 10 a, AC 500 V, NH0, gL/gG, IEC, indicator double, metal terminals NH FUSE 10A 500V GG/GL SIZE 0 Eaton Bussmann series low voltage NH Fuse, 500V, 10A, 120 kAIC, Combination fuse status indicator, fuse, Class C gL/gG

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
10NHG0B
EAN
5027590428927
UPC
051712232401
Product Length/Depth
125 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
299.3333333 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
10 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH0
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors

ETIM for 10NHG0B Circuit breakers and fuses (EC000055)
Feature Name Feature Value
Fuse construction type according to IEC 60269 (EF015865) NH0
Voltage type (EF000187) AC
Rated current (EF000227) 10 A
Rated voltage AC (EF007682) 500 V
Rated switching capacity AC (EF017698) None kA
Rated voltage DC (EF012281) None V
Rated switching capacity DC (EF017699) None kA
Utilization category according to IEC 60269 (EF002572) gG
Type of fuse status indicator (EF004473) Combination fuse status indicator
Insulated metal gripping lugs (IMGL) (EF012538) false
Power loss at rated current (EF012389) None W
