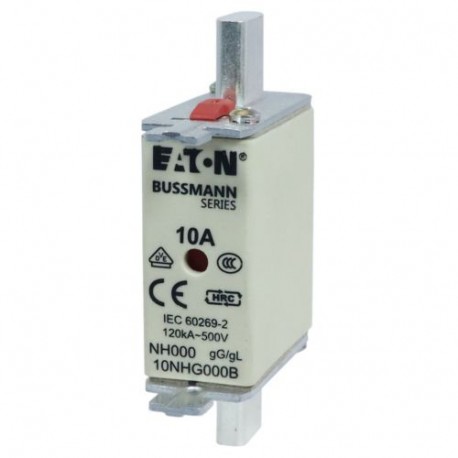

EATON - MOELLER NH FUSE 10A 500V SIZE 000 GG MGL NH FUSE 10A 500V SIZE 000 GG MGL 10NHG000B EATON ELECTRIC cartridge fuse, BT, 10 a, AC 500 V, NH000, gL/gG, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 10A 500V SIZE 000 GG MGL 10NHG000B EATON ELECTRIC cartridge fuse, BT, 10 a, AC 500 V, NH000, gL/gG, ..

NH FUSE 10A 500V SIZE 000 GG MGL

10NHG000B

10NHG000B

EATON - MOELLER

3 Pcs.

NH FUSE 10A 500V SIZE 000 GG MGL Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 10A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, square-body with knife blade contact, Ceramic body

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller NH FUSE 10A 500V SIZE 000 GG MGL is a low-voltage NH cartridge fuse utilized extensively in electrical distribution boards and industrial switchgear to protect cables and switchgear assemblies from sustained overloads. Blade-style fuses provide dependable overcurrent isolation across complex electrical networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: NH FUSE 10A 500V SIZE 000 GG MGL
  • Catalogue code: 10NHG000B
  • Catalogue title: NH FUSE 10A 500V SIZE 000 GG MGL 10NHG000B EATON ELECTRIC cartridge fuse, BT, 10 a, AC 500 V, NH000, gL/gG, ..
  • Manufacturer summary: NH FUSE 10A 500V SIZE 000 GG MGL Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 10A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, square-body with knife bla

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
10NHG000B
Model Code
NH FUSE 10A 500V SIZE 000 GG MGL
EAN
5027590428842
UPC
051712625760
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
131 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
10 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH02
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch BVL50

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
