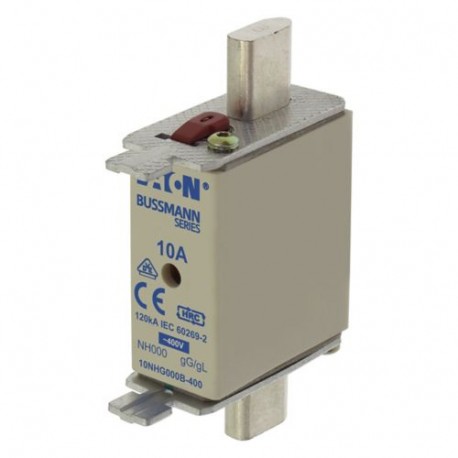

EATON - MOELLER NH FUSE 10A 400V GG SIZE 000 NH FUSE 10A 400V GG SIZE 000 10NHG000B-400 EATON ELECTRIC Fuse-link, LV, 10 A, AC 500 V, NH000, gL/gG, IEC, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 10A 400V GG SIZE 000 10NHG000B-400 EATON ELECTRIC Fuse-link, LV, 10 A, AC 500 V, NH000, gL/gG, IEC, ..

NH FUSE 10A 400V GG SIZE 000

10NHG000B400

10NHG000B-400

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 10 A, AC 500 V, NH000, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 10A 400V GG SIZE 000

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial control panels utilize low voltage NH Fuse-links such as the Eaton Moeller NH FUSE 10A 400V GG SIZE 000 component to protect auxiliary circuits and control transformers against sustained overcurrents. These parts ensure selective coordination within broader electrical distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: NH FUSE 10A 400V GG SIZE 000
  • Catalogue code: 10NHG000B400
  • Catalogue title: NH FUSE 10A 400V GG SIZE 000 10NHG000B-400 EATON ELECTRIC Fuse-link, LV, 10 A, AC 500 V, NH000, gL/gG, IEC, ..
  • Product description: General specifications Product Name Eaton Bussmann series low voltage NH Fuse Catalog Number 10NHG000B-400 Model Code NH FUSE 10A 400V GG SIZE 000 EAN 5027590428859 Product Length/Depth 79 mm Product Height 51 mm Product
  • Manufacturer summary: Fuse-link, LV, 10 A, AC 500 V, NH000, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 10A 400V GG SIZE 000

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
10NHG000B-400
Model Code
NH FUSE 10A 400V GG SIZE 000
EAN
5027590428859
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
131 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
10 A
Voltage rating
400 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH000
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
