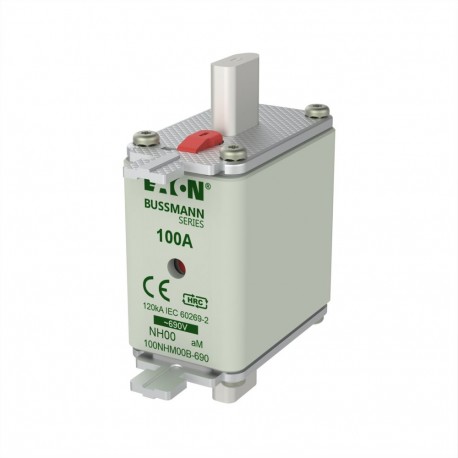

NH FUSE 100AMP 690V aM SIZE 00 DUAL IND Eaton Bussmann series low voltage NH Fuse, 690V, 100A, 120 kAIC, Combination fuse status indicator, fuse, Class aM Fuse, Fuse-link, low voltage, 100 A, AC 690 V, NH00, aM, IEC, dual indicator, square body with knife blade contacts, live gripping lugs, IEC 60269-2 fuse system A, DIN 43620, VDE 0636-2, Breaking Capacity 120 kA, Optional accessories fuse-holder SD00-D

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A low-voltage fuse-link configured with switchgear protection characteristics is commonly applied in motor circuits and transformer feeds where short-circuit clearing is required without nuisance tripping during high initial inrush currents. These industrial components mount securely inside fuse-disconnectors to protect connected machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Fuse construction type according to IEC 60269 (EF015865): NH00
  • Voltage type (EF000187): AC
  • Rated current (EF000227): 100 A
  • Rated voltage AC (EF007682): 690 V
  • Rated switching capacity AC (EF017698): 120 kA
  • Utilization category according to IEC 60269 (EF002572): aM (switchgear protection)
  • Type of fuse status indicator (EF004473): Combination fuse status indicator
  • Insulated metal gripping lugs (IMGL) (EF012538): No
  • Power loss at rated current (EF012389): 5.5 W

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
100NHM00B-690
EAN
5027590428354
UPC
051712393355
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
197 g
Compliances
RoHS Compliant
