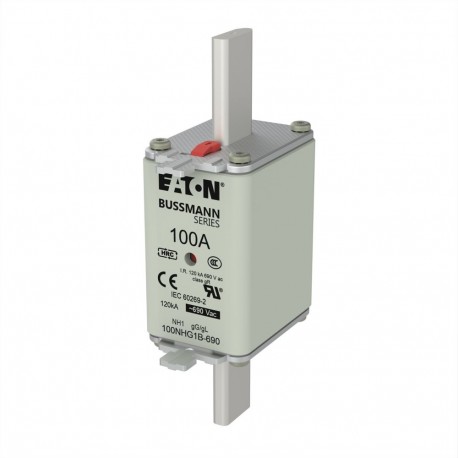

NH FUSE 100AMP 690V gG SIZE 1 100NHG1B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, du..
NH FUSE 100AMP 690V gG SIZE 1
100NHG1B690
100NHG1B-690
EATON - MOELLER
3 Pcs.
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Serving as a protective link within power distribution systems, the NH FUSE 100AMP 690V gG SIZE 1 manufactured by Eaton Moeller is an NH FUSE 100AMP 690V gG SIZE 1 100NHG1B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690V, NH1, gL/gG, IEC, du.. designed to interrupt dangerous overcurrents and protect electrical cables. Industrial fuse links are essential components in switchgear assemblies, safely containing fault arcs and preventing catastrophic failures in electrical installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fuse construction type according to IEC 60269 (EF015865): NH1
- Voltage type (EF000187): AC
- Rated current (EF000227): 100 A
- Rated voltage AC (EF007682): 690 V
- Utilization category according to IEC 60269 (EF002572): gG (cable protection/equipment protection)
- Type of fuse status indicator (EF004473): Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) (EF012538): No
More info
▲General specifications
CE Marked
IEC 60269-2
DIN 43620
Product specifications
FEH- Fuse extraction handle
SD12-SK Shroud kit
SD00-PB 2-phase barriers
TD1-IP20 Triple pole protection kit
Knife blade contacts
TD1-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
