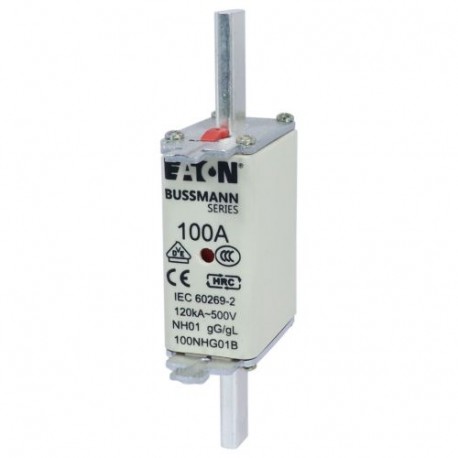

EATON - MOELLER NH FUSE 100A 500V GG/GL SIZE 01 NH FUSE 100A 500V GG/GL SIZE 01 100NHG01B EATON ELECTRIC Fuse-link, LV, 100 A, AC 500 V, NH01, gL/gG, IEC, d.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 100A 500V GG/GL SIZE 01 100NHG01B EATON ELECTRIC Fuse-link, LV, 100 A, AC 500 V, NH01, gL/gG, IEC, d..

NH FUSE 100A 500V GG/GL SIZE 01

100NHG01B

100NHG01B

EATON - MOELLER

3 Pcs.

Fuse-link, LV, 100 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs NH FUSE 100A 500V GG/GL SIZE 01 Eaton Bussmann series low voltage NH Fuse, 500V, 100A, 120 kAIC, Combination fuse status indicator, fuse, Class C gL/gG

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
100NHG01B
EAN
5027590428118
UPC
051712625999
Product Length/Depth
135 mm
Product Height
57.8 mm
Product Width
29.55 mm
Product Weight
270.667 g
Compliances
RoHS Compliant
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
100 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz

Product specification

Fuse size
NH01
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
Microswitch 170H0235
