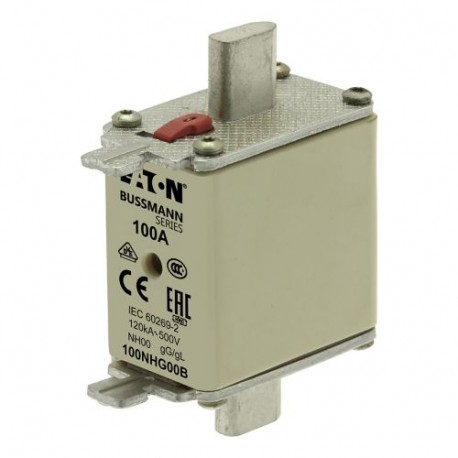

EATON - MOELLER NH FUSE 00 gG 100A 500V D.I. NH FUSE 00 gG 100A 500V D.I. 100NHG00B EATON ELECTRIC cartridge fuse, BT, 100 a, AC 500 V, NH00, gL/gG, IEC,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NH FUSE 00 gG 100A 500V D.I. 100NHG00B EATON ELECTRIC cartridge fuse, BT, 100 a, AC 500 V, NH00, gL/gG, IEC,..

NH FUSE 00 gG 100A 500V D.I.

100NHG00B

100NHG00B

EATON - MOELLER

3 Pcs.

cartridge fuse, BT, 100 a, AC 500 V, NH00, gL/gG, IEC, indicator double FUSE NH 00 gG 100A 500V D.I. Fuse-link, low voltage, 100 A, AC 500 V, NH00, gL/gG, IEC, dual indicator

Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
100NHG00B
Model Code
NH FUSE 00 gG 100A 500V D.I.
EAN
5027590428064
UPC
051712682817
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
200 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620

Electrical data

Amperage Rating
100 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH00
Insulated metal gripping lugs (IMGL)
No

Accessories

Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
