View larger
Images are for illustrative purposes only. Please refer to data sheet for details

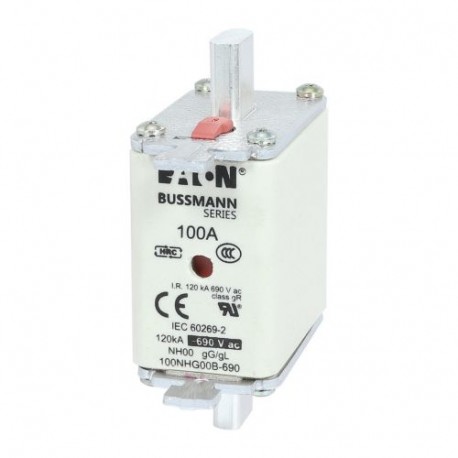

NH FUSE 100AMP 690V gG SIZE 00 100NHG00B-690 EATON ELECTRIC Fuse-link, LV, 100 A, AC 690 V, NH00, gL/gG, IEC..
NH FUSE 100AMP 690V gG SIZE 00
100NHG00B690
100NHG00B-690
EATON - MOELLER
3 Pcs.
Fuse-link, LV, 100 A, AC 690 V, NH00, gL/gG, IEC, dual indicator, live gripping lugs
NH FUSE 100AMP 690V gG SIZE 00
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 690V, 100A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, square-body with knife blade contact, Silver plated copper contact plate
Automation > Low Voltage HRC fuse
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
100NHG00B-690
EAN
5027590428071
UPC
051712164436
Product Length/Depth
79 mm
Product Height
58 mm
Product Width
30 mm
Product Weight
216.3333333 g
Compliances
RoHS Compliant
CE Marked
CE Marked
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
IEC 60269-2
DIN 43620
Electrical data
Amperage Rating
100 A
Voltage rating
690 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL
Frequency rating - min
45 Hz
Frequency rating - max
62 Hz
Product specification
Fuse size
NH00
Insulated metal gripping lugs (IMGL)
No
Accessories
Suitable for
SD00-D Single pole NH Fuse base
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
TD00-D Tripe pole NH Fuse base
Microswitch 170H0236
EBH Size 00 to 4 Horizontal fuse switch-disconnectors
