View larger

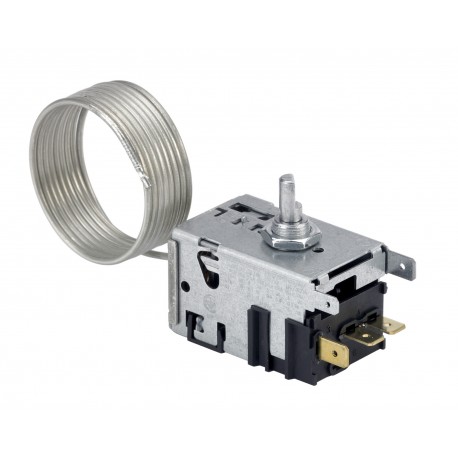

077B0026 DANFOSS REFRIGERATION THERMOSTAT 077B0, 6-36 AMP
077B0026
100
DANFOSS REFRIGERATION
100 units
Automation > DANFOSS REFRIGERATION Products
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Thermostat type 077B0026 DANFOSS REFRIGERATION THERMOSTAT 077B0, 6-36 AMP automatically regulates temperature within cold storage units, commercial display cases, or domestic refrigeration appliances. It senses thermal fluctuations and switches electrical loads on or off to maintain desired temperature setpoints. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Gross weight: 0.085 Kilogram
- Net weight: 0.08 Kilogram
- Volume: 0.309 Cubic decimeter
- EAN: 5702424005535
- Type: B0
- Product group: Mechanical cold controls
- Product Name Description: Thermostat
- Adjusted at pressure [mm Hg]: 760 mmHg
- Adjusting position: Warm
More info
▲Product Type: B0, Type designation: Without additional function, Used for product: Freezers without alarm, Warm cut-in [°C]: -17, Warm cut-out [°C]: -23, Cold cut-in [°C]: -23, Cold cut-out [°C]: -30, Capillary tube length [mm]: 1200
Product details
| Gross weight | 0.085 Kilogram |
| Net weight | 0.08 Kilogram |
| Volume | 0.309 Cubic decimeter |
| EAN | 5702424005535 |
| Type | B0 |
| Product group | Mechanical cold controls |
| Product Name Description | Thermostat |
| Gross weight | 0.085 Kilogram |
| Net weight | 0.08 Kilogram |
| Volume | 0.309 Cubic decimeter |
| EAN | 5702424005535 |
| Type | B0 |
| Product group | Mechanical cold controls |
| Product Name Description | Thermostat |
| Adjusted at pressure [mm Hg] | 760 mmHg |
| Adjusting position | Warm |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Approval | BEAB CE EAC LLC CDC TYSK cURus |
| Capillary tube length [mm] | 1200 mm |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Cold cut-in [°C] | -23 °C |
| Cold cut-out [°C] | -30 °C |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| In scope of WEEE | No |
| Packing format | Industrial pack |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | No |
| Terminals | 6,3 x 0,8 mm All |
| Type designation | Without additional function |
| UL mark | Yes |
| Used for product | Freezers without alarm |
| Warm cut-in [°C] | -17 °C |
| Warm cut-out [°C] | -23 °C |
| Adjusted at pressure [mm Hg] | 760 mmHg |
| Adjusting position | Warm |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Approval | BEAB CE EAC LLC CDC TYSK cURus |
| Capillary tube length [mm] | 1200 mm |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Cold cut-in [°C] | -23 °C |
| Cold cut-out [°C] | -30 °C |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| In scope of WEEE | No |
| Packing format | Industrial pack |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | No |
| Terminals | 6,3 x 0,8 mm All |
| Type designation | Without additional function |
| UL mark | Yes |
| Used for product | Freezers without alarm |
| Warm cut-in [°C] | -17 °C |
| Warm cut-out [°C] | -23 °C |
